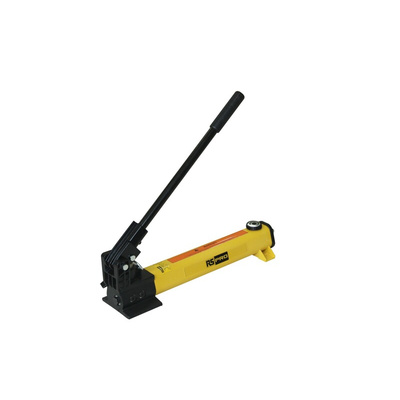

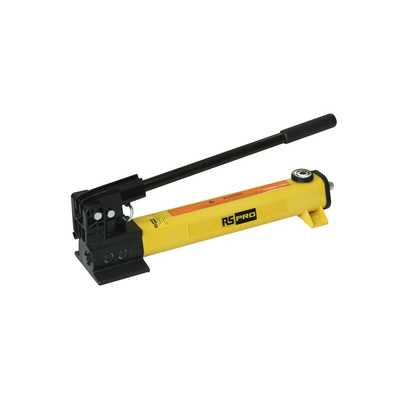

RS PRO Two Speed, Hydraulic Hand Pump, 0.901L, 25.4mm Cylinder Stroke, 700 bar

RS PRO Two Speed Hydraulic Hand Pump – 901 ml Oil Capacity

RS PRO is proud to introduce an exciting range of Hydraulic Hand Pumps. Each version has been expertly designed and crafted to give you the best user experience for bending, cutting, assembling, and dismantling. Upon inspection, this hand-operated tool includes features such as an internal pressure relief valve to prevent pump overload, a durable glass-filled nylon reservoir, and nylon encapsulated aluminium pump base for maximum corrosion resistance.

Why would you choose this Hydraulic Hand Pump?

This lightweight single-acting hydraulic pump, and has a 901 ml oil capacity, and has a two-speed operation with automatic switching. Our quality hand pumps are commonly used with hydraulic cylinders, hydraulic pullers, and hydraulic flange spreaders. The compact construction and lower handle make this device a joy to use, minimises operator fatigue during extended use, and can be easily carried and stored.

Features and Benefits

• Perfect for bending, cutting, assembling, and dismantling applications


• Lightweight, compact hand pump


• Two-speed operation and automatic switching


• Internal pressure relief valve


• Easy to operate, no need for a power source


• Cost effective and practical


• Durable, high performance


• Lower handle effort to minimize operator fatigue


• Non-conductive fibre-glass handle for operator safety

Mechanical Specification

• Length: 533 mm


• Width: 127 mm


• Height: 157 mm


• Weight: 4.5 kg

General Specification

• Two Speed


• Usable Oil Capacity: 901 ml


• Plunger Stroke: 25.4 mm


• Displacement per Stroke 1st Stage: 11.26 cm³


• Displacement per Stroke 2nd Stage: 2.47 cm³


• 1st Stage Operating Pressure: 13bar


• 2nd Stage Operating Pressure: 700bar


• Maximum Handle Effort: 42.2 kg


• Outlet Type: NPT3/8

RS PRO Hydraulic Hand Pump Variant - Available Separately

RS PRO also offers a two-speed hydraulic hand pump with reduced oil capacity.

• 327 ml oil capacity, Two Speed, RS Stock no: 234-9578

Why would you choose RS PRO for hydraulic hand pumps?

RS PRO is our own brand that offers high-quality manual hydraulic hand pumps to suit your applications. Our great value products give you more choice and are easily found via our improved ’Apply Filters’ option. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Applications

• Pipeline Maintenance


• Automotive


• Load and test machinery components


• Construction


• Landscaping
