RS PRO Two Speed, Hydraulic Hand Pump, 0.901L, 25.4mm Cylinder Stroke, 700 bar

RS PRO Two Speed Hydraulic Hand Pump & Cylinder Set

RS PRO is proud to introduce an exciting range of hydraulic hand pumps and cylinder sets. Each version has been expertly designed and crafted to give you the best user experience for bending, cutting, assembling, and dismantling. The primary devices include a two-speed hydraulic hand pump and a 10-ton single-acting hydraulic cylinder.

Hand Pump

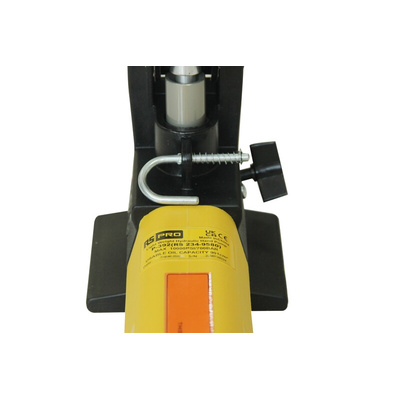

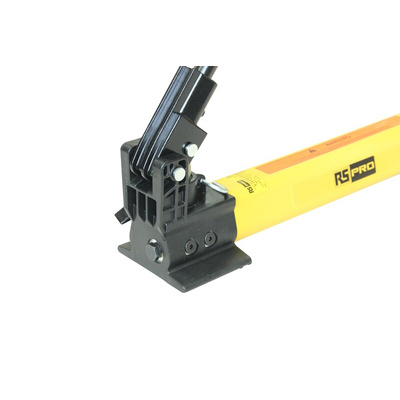

The hydraulic hand pump includes features such as an internal pressure relief valve to prevent pump overload, a durable glass-filled nylon reservoir, and a nylon encapsulated aluminium pump base for maximum corrosion resistance. This lightweight single-acting hydraulic pump, and has a 901 ml oil capacity, and has a two-speed operation with automatic switching. The compact construction and lower handle make this device a joy to use, minimises operator fatigue during extended use, and can be easily carried and stored.

Cylinder

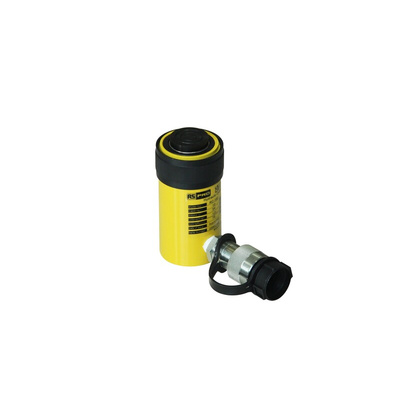

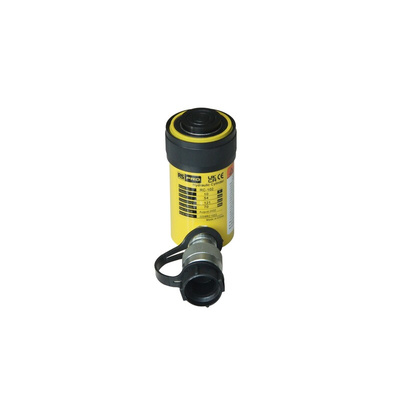

The 10-ton hydraulic cylinder is made from a high-strength steel alloy with an enamel-baked finish for corrosion resistance. The single-acting round body cylinder offers a unique pre-tensioned spring return design and a single port making it ideal for pushing or lifting applications.

Features and Benefits

• Lightweight, compact hand pump


• Two-speed operation and automatic switching


• Internal pressure relief valve


• Easy to operate, no need for a power source


• Cost effective and practical


• Durable, high performance


• Lower handle effort to minimize operator fatigue


• Non-conductive fibre-glass handle for operator safety

Hydraulic Hand Pump Mechanical Specification

• Length: 533 mm


• Width: 127 mm


• Height: 157 mm


• Weight: 4.5 kg

Hydraulic Hand Pump General Specification

• Two Speed


• Usable Oil Capacity: 901 ml


• Plunger Stroke: 25.4 mm


• Displacement per Stroke 1st Stage: 11.26 cm³


• Displacement per Stroke 2nd Stage: 2.47 cm³


• 1st Stage Operating Pressure: 13bar


• 2nd Stage Operating Pressure: 700bar


• Maximum Handle Effort: 42.2 kg


• Outlet Type: NPT3/8

Hydraulic Cylinder General Specification

• Single Acting


• Capacity 10 Tonne(s)


• Maximum Cylinder Capacity: 981kN


• Stroke: 54 mm


• Cylinder Effective Area: 14.5 cm²


• Operated by Two-speed Hand-pump


• Oil Capacity: 78 cm³


• Maximum Operating Pressure: 700bar


• Plunger Type: Solid


• Material: Steel


• Safety Valve


• Used for Synchronous Lifting, Gantries, Load Positioning, Jacks

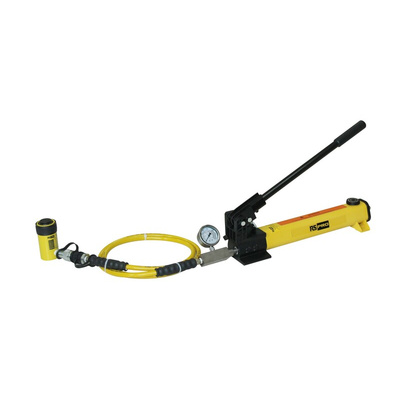

What do you get!

• Two Speed Hydraulic Hand Pump


• 10-Ton Single acting hydraulic cylinder


• 2.0m safety hose

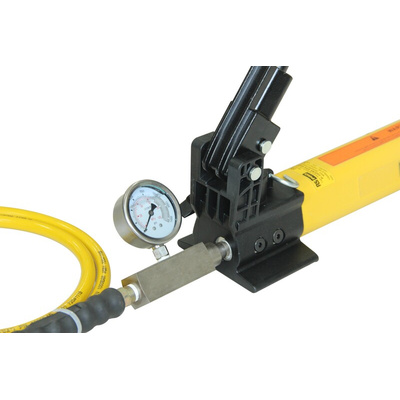

• Pressure gauge with gauge adapter


• Quick release NPT3/8 couplings

Why would you choose RS PRO for hydraulic hand pumps?

RS PRO is our own brand that offers high-quality manual hydraulic hand pumps to suit your applications. Our great value products give you more choice and are easily found via our improved ’Apply Filters’ option. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Applications

• Pipeline Maintenance


• Automotive


• Load and test machinery components


• Construction


• Landscaping
