RS PRO Square Nylon Tube Insert, 1000kg Static Load Capacity, Вставка

RS PRO Square Nylon Threaded Tube Insert, M12, 40 mm x 40 mm x 43mm, 1000 kg Static Load Capacity

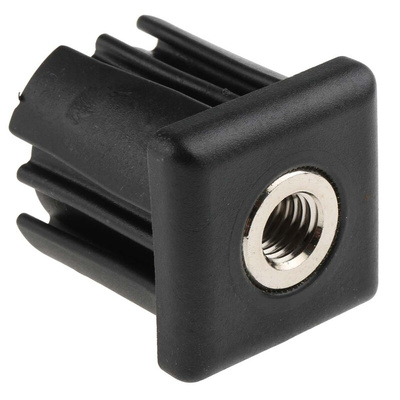

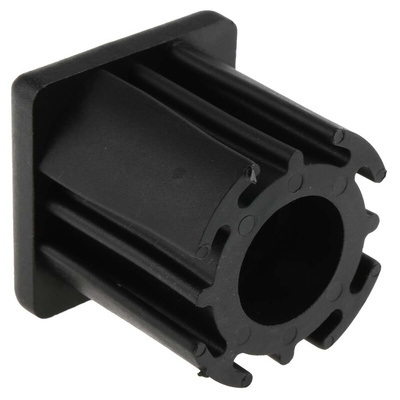

Make life easier when attaching feet or castors to metal structures with these RS PRO threaded tube inserts. This square-shaped nylon piece is intended for fitting self-levelling feet.

The component has a static load capacity of 1000 kg and it fits inside of square-shaped tubing. For additional strength the component's reinforced and it's suitable to use with structural aluminium tubes or metal tubing. The bush material is made from nickel-plated brass and the body is made from tough black nylon. This part has measurements of 40 mm (L) x 40 mm (W) x 43 mm (H) and it has a thread size of M12.

Aside from these RS PRO tube inserts, there are others available that have different thread sizes, load capacities and dimensions. If you use mobile structures or need to adjust the height, threaded tube inserts are required. They're commonly used with conveyors, display stands and trolleys.

Features and Benefits

• Square threaded tube insert
• Bush material of nickel-plated brass
• Body material of reinforced black nylon
• Static load capacity of 1000 kg
• Dimensions of 40 mm (L) x 40 mm (W) x 43 mm (H)
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
