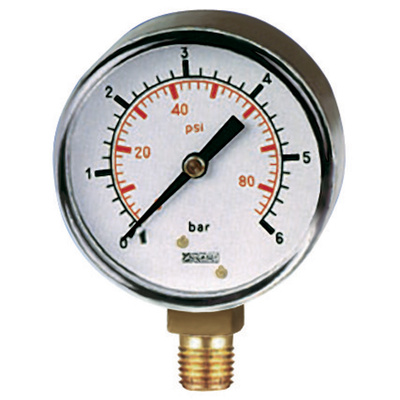

RS PRO BSP 1/4 Analogue Pressure Gauge 160psi Bottom Entry, 0psi min.

RS PRO BSP 1/4 Bottom Entry Pressure Gauge 160psi, 0psi min.

This RS PRO tried and tested dual scale pressure gauge with bottom connection can be used across a wide range of equipment. The pressure gauge has a steel case which makes it strong and durable in many environments.

This RS PRO pressure gauge has been designed with the highest quality and versatility in mind and features 1/4” BSPT thread with 0 to 2 bar pressure and a 50 mm gauge diameter.

Features and Benefits

• Dual scale bar/psi gauge with bottom connection


• Steel case, aluminium dial and a pointer


• Acrylic window and a brass bottom connection


• 1/4 inch BSPT with 0 to 10 bar pressure and a 50 mm gauge diameter


• ±3-2-3% ANSI/ASME Grade B

Applications

• Air conditioning systems


• Heating systems


• Compressors


• Medical engineering


• Operating machinery


• Hydraulics systems

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
