RS PRO BSP 1/4 Analogue Vacuum Gauge 0bar Back Entry, -1bar min.

RS PRO BSP 1/4 Back Entry Vacuum Gauge 0bar, -1bar min.

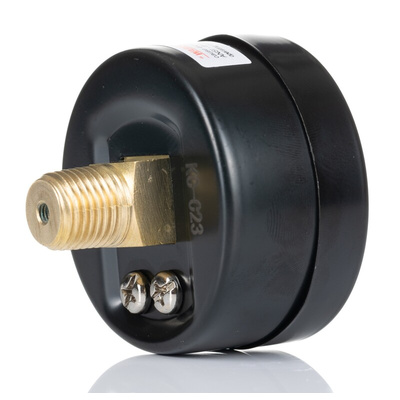

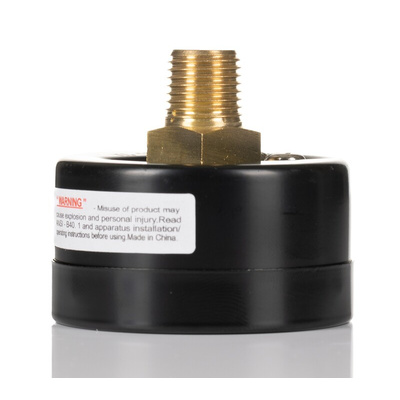

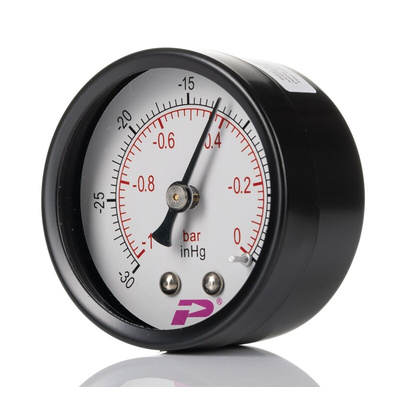

This RS PRO tried and tested back entry vacuum gauge with centre back connection can be used across a wide range of equipment. The pressure gauge has a steel case which makes it strong and durable in many environments.

This RS PRO vacuum gauge has been designed with the highest quality and versatility in mind and features 1/4” BSPT thread with 0 to 1 bar pressure and a 50 mm gauge diameter.

Features and Benefits

• Dry vacuum gauge


• Steel case, aluminium dial and a pointer


• Acrylic window and a brass centre back connection


• 1/4 inch BSPT with 0 to 1 bar pressure and a 50 mm gauge diameter


• ±3-2-3% ANSI/ASME Grade B

Applications

• Air conditioning systems


• Heating systems


• Compressors


• Medical engineering


• Operating machinery


• Hydraulics systems

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
