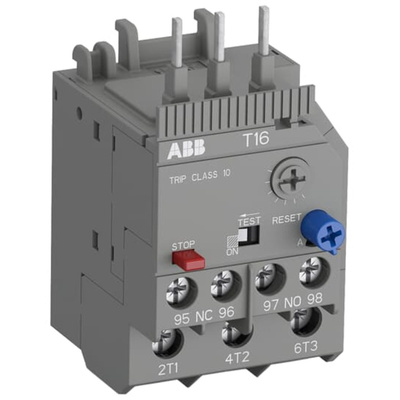

1SAZ711201R1008 T16-0.17, ABB Overload Relay 1NC, 1NO, 6 A F.L.C, 170 mA Contact Rating, 600 V dc, 3P

The ABB Thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the mini contactors or block contactors.

Rated operational voltage auxiliary circuit 600 V AC/DC, main circuit 690 V AC
Rated operational current (Ie) 0.17 A
Setting range 0.13 to 0.17 A
Number of poles 3
