RS PRO Pressure Switch, G1/4 -1bar to 80 bar

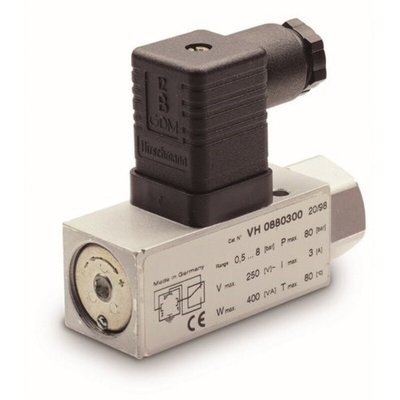

RS PRO Pneumatic Electro-Mechanical Pressure Switch

Introducing the range of RS PRO Pneumatic Electro-Mechanical Pressure Switches, designed for detecting the rise and fall of liquid, air and gas in pneumatic systems and applications. The high-quality pressure switch fitting ensures optimum performance in operations by providing an electrical signal once the setpoint pressure is reached. The robust PC plastic housing ensures optimum performance and is easy to connect and install, saving on valuable time and resource.

Features and Benefits:

• The range of RS PRO pneumatic electro-mechanical pressure switches are specially designed for pressure detection in pneumatic systems and are suitable for use with neutral, gaseous and liquid fluids


• The durable aluminium material can withstand heavy-duty use over prolonged periods of time and is IP65 rated for ultimate protection


• In addition to this, the switch housing is also resistant to surface rust and oxidisation, even when used in damp or warm environments


• Supplied in a G1/4 port size

Applications:

Adjustable and vacuum pressure switches are primarily used to manage air or gas flow in a variety of industrial settings, as well as pneumatic, automation and control applications. These include:

• Textile production


• Pneumatic presses and equipment used in the food and beverage industry


• Pneumatic automation

The RS Pro 0880 series pressure switch has an operating pressure ranges between 1 to 16 bar. This is a positive pressure switch with a G 1/4 thread connection. This electro-mechanical pressure switch is used for connecting and disconnecting electronic circuits utilizing pressure. It monitors minimum pressure and is equipped with automatic switch off and pressure limit warning. This switch is suitable for use in pneumatic systems.

Why RS PRO?

Gold-plated contacts
High cycle life
Vibration resistant to 15 g
Microswitch approved by UL and CSA
Intrinsically safe operation

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
