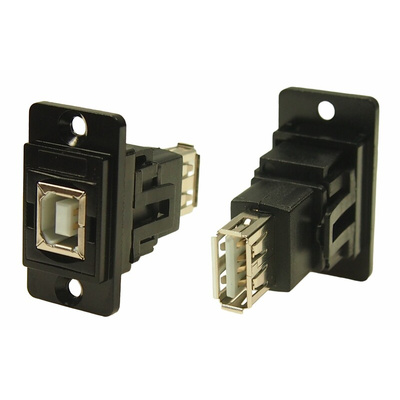

RS PRO Slim Dual Mounting USB 2.0 B-A Feedthrough Connector
From RS PRO a range of super high-quality USB 2.0 B-A feedthrough connectors. These slim dual panel mount connectors are commonly used in custom applications where high-speed data transfer connectivity is required. They have a slim profile so will only take up minimal space and can be front or rear mounted with enclosures or rack panel arrangements.During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. These slim dual USB connectors are compatible with male USB 2.0 cables offering excellent transfer speeds to produce reliable transmissions in telecommunications and networking.
Features and Benefits
ulliUSB 2.0/liliUSB Type B-A receptacles/liliPanel Mount – front and rear/liliStandard rectangular cut-out/liliMounting holes/liliLow rear profile ideal for applications with minimal space/liliNo soldering or punch termination/liliOperating temperature: Min -20 °C, Max +50 °C/li/ul
Material
ulliInsert: ABS/liliFrame: Diecast, Nickel or black plated/li liShell: Nickel plated steel/liliContacts: Gold Plated/li/ul
Specifications
ulliVoltage rating: 30 V AC /liliCurrent rating: 1.5 A max /liliContact resistance: 50 mΩ max /liliInsulation resistance: 20 mΩ min /liliDielectric withstanding voltage: 500V AC /liliOperating Temperature: -20°C to 50°C/li/ul
Variants
ulliUSB 2.0 B-A FT Nickel frame, CSK holes, RS stock no: a href=\"/web/p/products/2354752\""235-4752/a/liliUSB 2.0 B-A FT Black metal frame, CSK holes, RS stock no: a href=\""/web/p/products/2354753\""235-4753/a/li/ul
Applications
ulliTelecommunication/liliEthernet Network Interface/liliAudio Soundboard/liliComputers/li/ul
Why would you choose RS PRO for Feedthrough Connectors?
RS PRO offers a wide range of feedthrough connectors to suit your applications. Our range of slim dual connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we re confident of their exceptional quality.
