Ethernet Connector Type, RS PRO Socket Cat5e RJ45 Connector

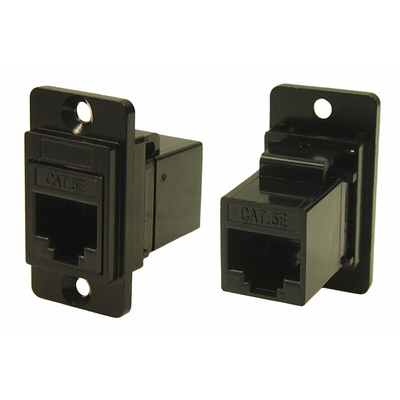

RS PRO Slim RJ45 CAT5e Shielded Panel Mount Feedthrough Connector
From RS PRO a range of super high-quality RJ45 feedthrough connectors with female ports. These shielded panel mount Cat5e connectors are commonly used in custom applications where ethernet-based connectivity is required. They have a slim profile so will only take up minimal space when installed in enclosures or rack panel arrangements.During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. Slim RJ45 is compatible with Cat5e ethernet cables and when combined produce reliable transmissions in telecommunications and networking.
Features and Benefits
ulliRJ45 shielded connector/liliCat5e/liliFemale receptacles/liliPanel Mount/liliStandard rectangular cut-out/liliOptional hole mounting/liliUse Cat5e cables (T568A \u0026 T568B wiring) /liliLow rear profile ideal for applications with minimal space/liliNo soldering or punch termination/liliOperating temperature: Min -10 °C, Max +70 °C/li/ul
Material
ulliRJ45 In-Line Coupler: PC/ABS, UL 94V-0, Black colour/liliCoupler Contact: Phosphor Bronze, 3-50 micro inches gold plating over nickel plate/liliPCB: FR4, UL 94V-0/liliFrame: Diecast, Nickel or black plated/li/ul
Variants
ulliDual SLIM FT Cat5e RJ45 Nickel frame, CSK holes, RS stock no: a href=\"/web/p/products/2354760\""235-4760/a/liliDual SLIM FT Cat5e RJ45 Black plastic frame, CSK holes, RS stock no: a href=\""/web/p/products/2354761\""235-4761/a/li/ul
CAT5e
Cat5e supports 10/100/1000 Ethernet, Fast Ethernet, and Gigabit Ethernet.
Approvals
ulliISO/IEC 11801 and EN50173/liliANSI/TIA/EIA 568B.2/li/ul
Consider RS PRO Cat5e Cables!
RS PRO offers a wide range of Cat5e cables, both terminated and unterminated. These cables are a version of ethernet cables, running from the internet source, like a router, to the intended target. The use of copper within the patch cord itself guarantees excellent network connection with reliable and smooth internet activity, suitable for both home and workplace environments. Browse our range for your ideal solution.
Applications
ulliTelecommunication/liliEthernet Network Interface/liliComputers/li/ul
Why would you choose RS PRO for RJ45 Connectors?
RS PRO offers a wide range of ethernet connector products to suit your applications. Our range of RJ45 connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we re confident of their exceptional quality.
