RS PRO Socket RJ11 Connector, Panel Mount, Cat3

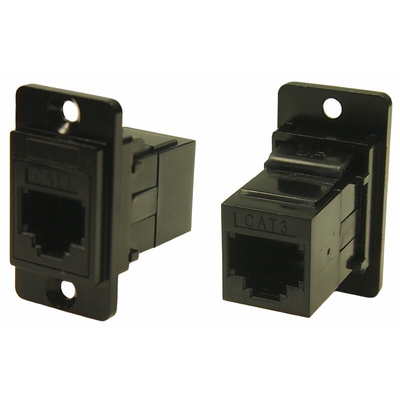

RS PRO Dual Slim RJ11 CAT3 Feedthrough Connector

From RS PRO a range of super high-quality RJ11 feedthrough connectors with female ports. These dual slim Cat3 connectors are commonly used in custom applications where ethernet-based connectivity is required. They have a slim profile so will only take up minimal space, can be front or rear mounted on popular enclosures or rack panel arrangements.
During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. Dual slim RJ11 connectors are compatible with Cat3 ethernet cables and when combined produce reliable transmissions in telecommunications and networking.

Features and Benefits

• RJ11, Cat3


• Female receptacles


• Panel Mount - front or rear


• Standard rectangular cut-out


• Hole mounts


• Use Cat3 cables


• Low rear profile


• No soldering or punch termination


• Operating temperature: Min -10 °C, Max +60 °C

Material

• RJ11 In-Line Coupler: PC/ABS, UL 94V-0, Black colour


• RJ11 In-Line Coupler Contact: Phosphor Bronze, 3-50 micro inches gold plating over nickel plate


• PCB: FR4, UL 94V-0


• Frame: Diecast, Nickel or black plated

Variants

• Dual SLIM FT Cat3 RJ11 Nickel frame, CSK holes; RS stock no: 235-4768


• Dual SLIM FT Cat3 RJ11 Black plastic frame, CSK holes; RS stock no: 235-4769

Consider RS PRO Cat3 Cables!

RS PRO offers a wide range of Cat3 cables, both terminated and unterminated. These cables are a version of ethernet cables, running from the internet source, like a router, to the intended target. The use of copper within the patch cord itself guarantees excellent network connection with reliable and smooth internet activity, suitable for both home and workplace environments. Browse our range for your ideal solution.

Applications

• Telecommunication


• Ethernet Network Interface


• Custom Sound boards


• Computers

Why would you choose RS PRO for RJ11 Connectors?

RS PRO offers a wide range of ethernet connector products to suit your applications. Our range of RJ11 connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
