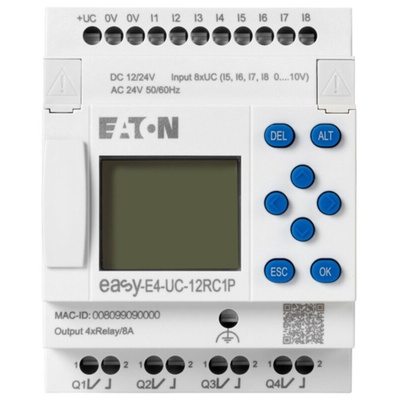

197504 EASY-E4-UC-12RC1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Analog Input

The Electronic control relay has rated operating voltage of 12 VDC, 24 VDC or 24 VAC. It has 8 digital input of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 relay outputs for 12 to 250 VAC or 12 to 240 VDC. The easy-E4 control relay is equipped with a display, a clock, an integrated Ethernet interface and push-in terminals.

Dimensions 71.5 x 90 x 58 mm
Connection type push-in terminals
Connections RJ45 plug, 8-pin
Cable CAT5
Display type monochrome
Operating ambient temperature °C -25 to 55 mm
Input impedance 13.3 kΩ
Data transfer rate 10/100 Mbit/s
Degree of protection (IP) IP20
UL File No. E205091
UL Category Control No. NRAQ/7
North America Certification UL listed

Note

Eaton formerly known as Moeller

Datasheet - 197504
