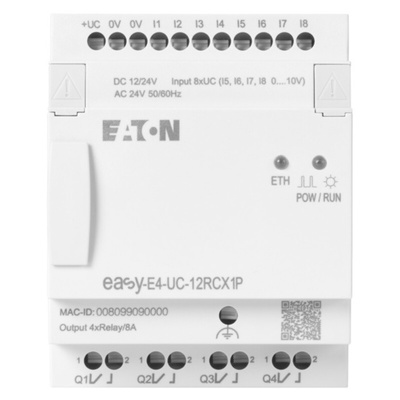

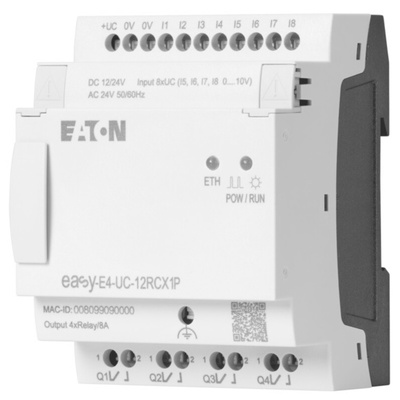

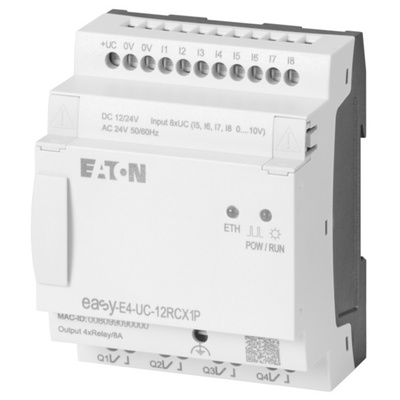

197505 EASY-E4-UC-12RCX1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Analog Input

The Electronic control relay has rated operating voltage of 12 VDC, 24 VDC or 24 VAC. It has 8 digital inputs of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 relay outputs for 12–250 VAC or 12–240 VDC. The easy-E4 control relay is equipped with diagnostics LEDs, a clock, an integrated Ethernet interface and push in terminals.

Real time clock
Connection type push-in terminals
Software EASYSOFT-SWLIC/easySoft 7
Dimensions 71.5 x 90 x 58 mm
Ethernet connections RJ45 plug, 8-pin
Ethernet cable CAT5
Status indicator (LED) Power/RUN Ethernet
Operating ambient temperature -25 to 55, cold as per IEC 60068-2-1
Mounting position vertical or horizontal
Accuracy of timing relays ± 0.02 %
Frequency 50/60 (± 5%) Hz
Data transfer rate 10/100 Mbit/s
Connections RJ45 plug, 8-pin
Cable CAT5

Note

Eaton formerly known as Moeller

Datasheet - 197505
