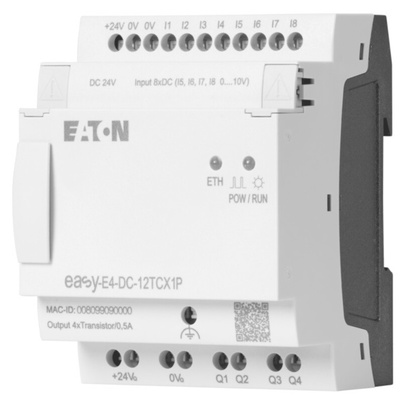

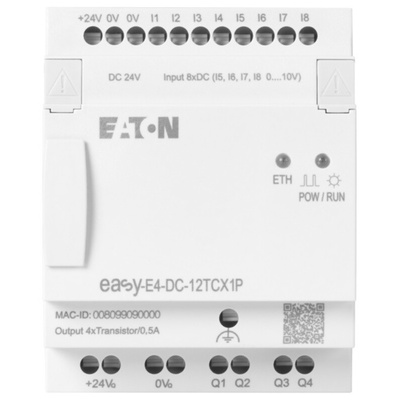

197507 EASY-E4-DC-12TCX1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Analog Input

The Electronic control relay has rated operating voltage of 24 VDC. It has 8 digital inputs with 24 VDC are available, of which 4 inputs can also be used as analog inputs and 4 inputs can be used as high-speed counters. The control relay has 4 transistor outputs for 24 VDC. The easy-E4 control relay is equipped with diagnostics LEDs, a clock, an integrated Ethernet interface and push in terminals.

Real time clock
Dimensions 71.5 x 90 x 58 mm
Ethernet connections RJ45 plug, 8-pin
Ethernet cable CAT5
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Accuracy of timing relays of values ± 0.02 %
Data transfer rate 10/100 Mbit/s

Note

Eaton formerly known as Moeller

Datasheet - 197507
