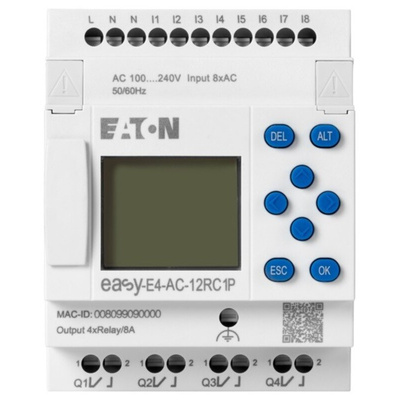

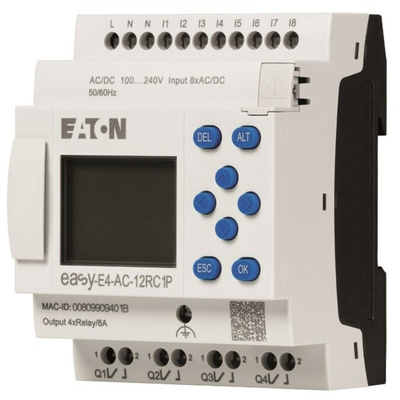

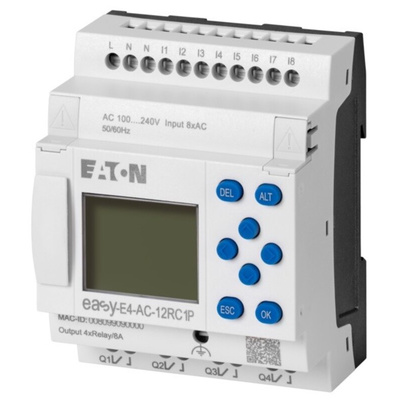

197508 EASY-E4-AC-12RC1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Analog Input, Контроллер

The Electronic control relay with a rated operating voltage of 100 to 240 VAC or 100 to 240 VDC. For cULus, 100 to 110 V DC applies to all V DC specifications. 8 digital inputs with 100–240 VAC or 100–240 VDC are available. The control relay has 4 relay outputs for 12–250 VAC or 12–240 VDC. The easy-E4 control relay is equipped with a display, a clock, an integrated Ethernet interface and push-in terminals.

Real time clock
Display & keypad
Software EASYSOFT-SWLIC/easySoft 7
Connection type push-in terminals
Dimensions 71.5 x 90 x 58 mm
Display type monochrome
Lines x characters 6 x 16
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Accuracy of timing relays of values ± 0.02 %
Frequency 50/60 (± 5%) Hz

Note

Eaton formerly known as Moeller

Datasheet - 197508
