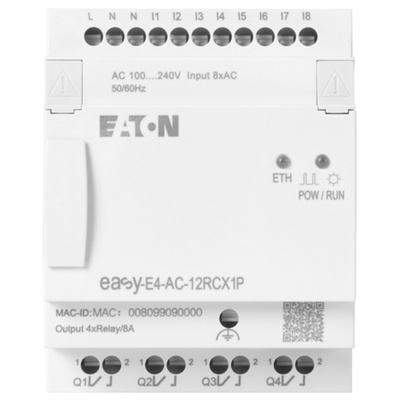

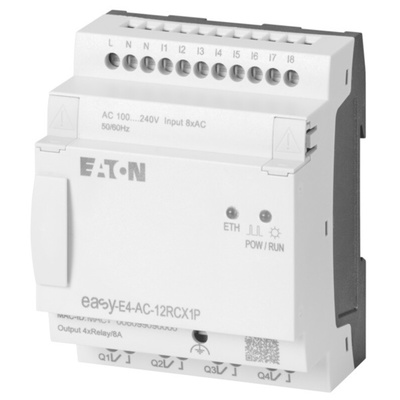

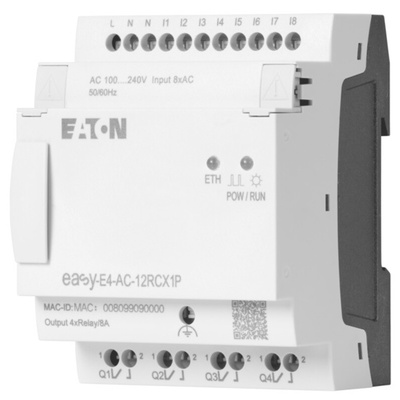

197509 EASY-E4-AC-12RCX1P, Eaton EasyE4 Series Control Relay, Relay Output, 8-Input, Digital Input

The Electronic control relay has rated operating voltage of 100 to 240 VAC or 100 to 240 VDC. For cULus, 100 to 110 V DC applies to all V DC specifications. 8 digital inputs with 100–240 VAC or 100–240 VDC are available. The control relay has 4 relay outputs for 12–250 VAC or 12–240 VDC. The easy-E4 control relay is equipped with diagnostics LEDs, a clock, an integrated Ethernet interface and push-in terminals.

Output type relay
Connection type push-in terminals
Software EASYSOFT-SWLIC/easySoft 7
Dimensions 71.5 x 90 x 58 mm
Connection type push-in terminals
Ethernet connections RJ45 plug, 8-pin
Ethernet cable CAT5
Mounting position vertical or horizontal
Accuracy of timing relays (of values) ± 0.02 %
Protection against polarity reversal
Frequency 50/60 (± 5%) Hz
Rated frequency 50/60 Hz

Note

Eaton formerly known as Moeller

Datasheet - 197509
