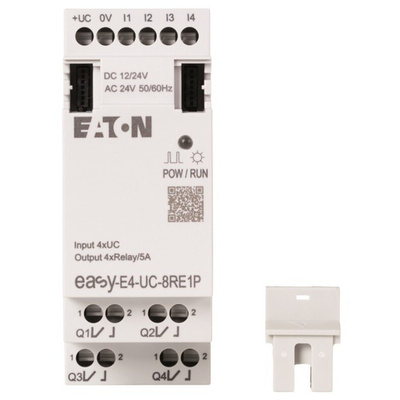

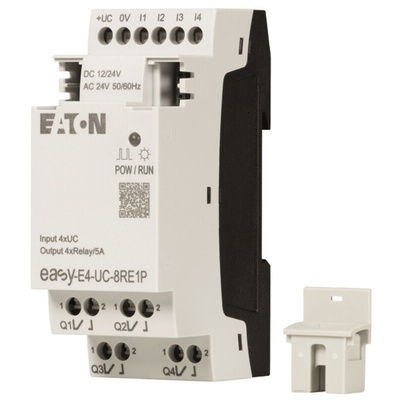

197510 EASY-E4-UC-8RE1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Digital Input

The I/O expansion is for control relays in the easyE4 series with a rated operating voltage of 12 VDC, 24 VDC or 24 VAC. This expansion provides 4 digital inputs for 12 VDC, 24 VDC or 24 VAC and 4 relay outputs for 12–250 VAC or 12–220 VDC. Connections are established using push-in terminals. The connection to the control relay or any other expansion in the easyE4 series is established using the EASY-E4-CONNECT1 connector (item 197225), which is included as standard.

Dimensions 35.5 x 90 x 58 mm
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Protection against polarity reversal
Frequency 50/60 (± 5%) Hz
Software EASYSOFT-SWLIC/easySoft 7
Connection type push-in terminals
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2

Note

Eaton formerly known as Moeller

Datasheet - 197510
