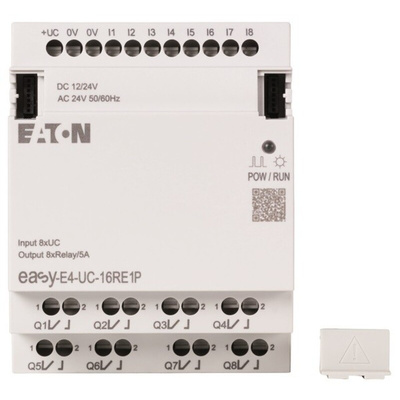

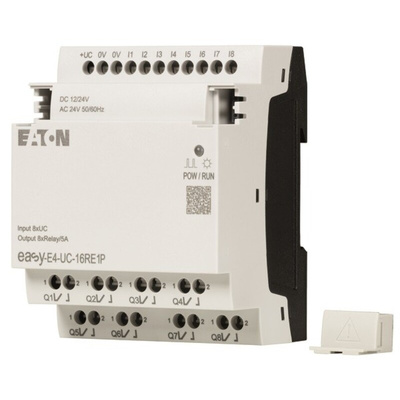

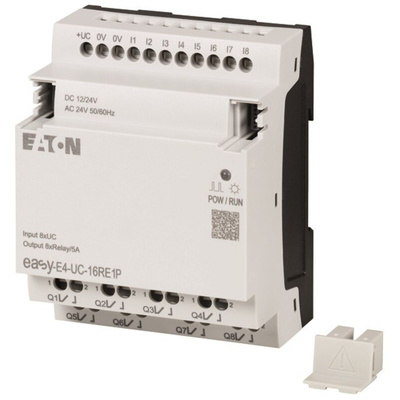

197511 EASY-E4-UC-16RE1P, Eaton EasyE4 Series Control Relay, Relay Output, 8-Input, Digital Input

The I/O expansion for control relays in the easyE4 series with a rated operating voltage of 12 VDC, 24 VDC or 24 VAC. This expansion provides 8 digital inputs for 12 VDC, 24 VDC or 24 VAC and 8 relay outputs for 12–250 VAC or 12–220 VDC. The connections are established using push-in terminals.

Dimensions 71.5 x 90 x 58 mm
Connection type push-in terminals
Operating ambient temperature -25 to 55 °C, cold as per IEC 60068-2-1
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2
Protection against polarity reversal
Rated frequency 50/60 Hz

Note

Eaton formerly known as Moeller

Datasheet - 197511
