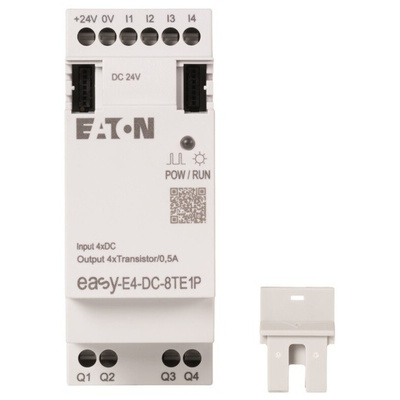

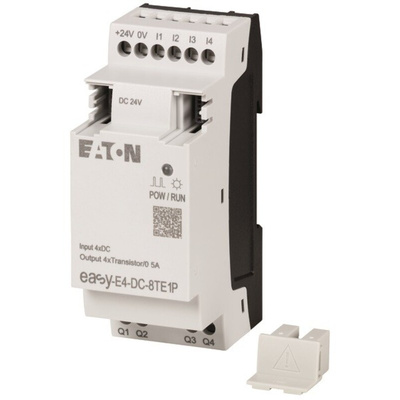

197512 EASY-E4-DC-8TE1P, Eaton EasyE4 Series Control Relay, Transistor Output, 4-Input, Digital Input

The I/O expansion for control relays in the easyE4 series with a rated operating voltage of 24 VDC. This expansion provides 4 digital inputs for 24 VDC and 4 transistor outputs for 24 VDC. Connections are established using push-in terminals.

Dimensions 35.5 x 90 x 58 mm
Connection type push-in terminals
Operating ambient temperature -25 to 55 °C, cold as per IEC 60068-2-1
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2
Output transistor
Software EASYSOFT-SWLIC/easySoft 7

Note

Eaton formerly known as Moeller

Datasheet - 197512
