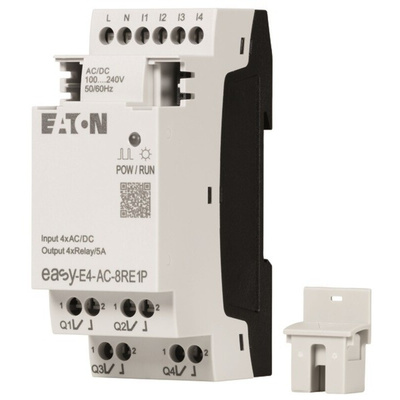

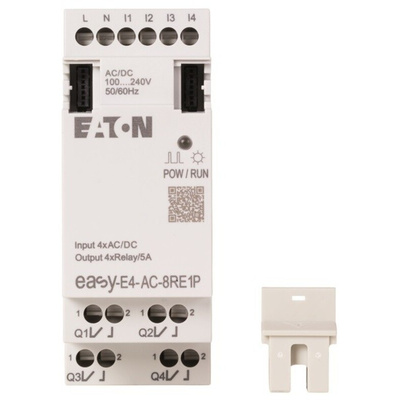

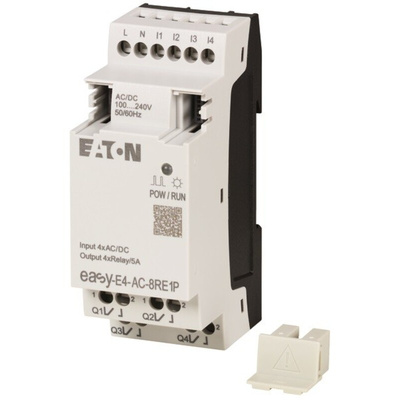

197514 EASY-E4-AC-8RE1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Digital Input

The I/O expansion is for control relays in the easyE4 series with a rated operating voltage of 100–240 VAC or 100–240 VDC. For cULus, 100–110 VDC applies to all VDC specifications. This expansion provides 4 digital inputs for 100–240 VAC or 100–240 VDC and 4 relay outputs for 12–250 VAC or 12–220 VDC. Connections are established using push-in terminals.

Software EASYSOFT-SWLIC/easySoft 7
Dimensions 35.5 x 90 x 58 mm
Connection type push-in terminals
Operating ambient temperature -25 to 55 °C
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical
Overvoltage category/pollution degree III/2
Protection against polarity reversal
Frequency 50/60 (± 5%) Hz

Note

Eaton formerly known as Moeller

Datasheet - 197514
