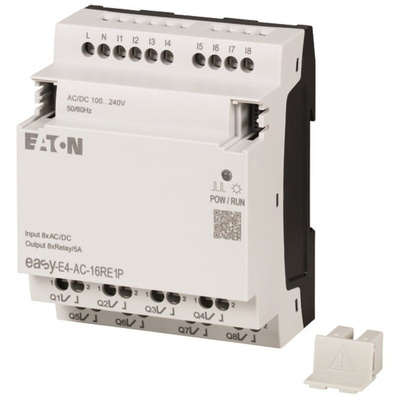

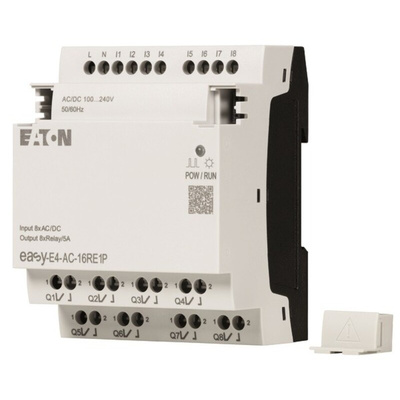

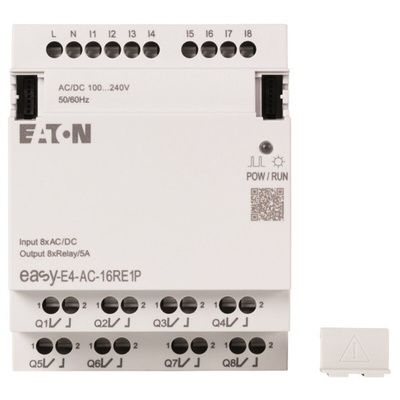

197515 EASY-E4-AC-16RE1P, Eaton EasyE4 Series Control Relay, Relay Output, 8-Input, Digital Input

The I/O expansion is for control relays in the easyE4 series with a rated operating voltage of 100–240 VAC or 100–240 VDC. For cULus, 100–110 VDC applies to all VDC specifications. This expansion provides 8 digital inputs for 100–240 VAC, 100–240 VDC and 8 relay outputs for 12–250 VAC or 12–220 VDC.

Software EASYSOFT-SWLIC/easySoft 7
Dimensions 71.5 x 90 x 58 mm
Connection type push-in terminals
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2
Protection against polarity reversal
Frequency 50/60 (± 5%) Hz
Rated frequency 50/60 Hz

Note

Eaton formerly known as Moeller

Datasheet - 197515
