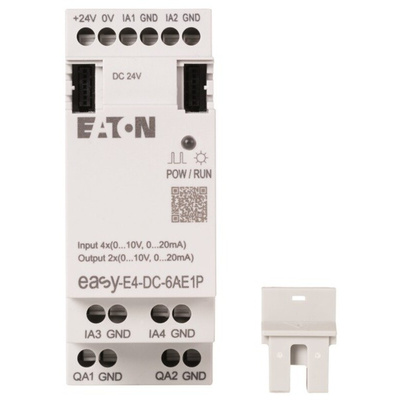

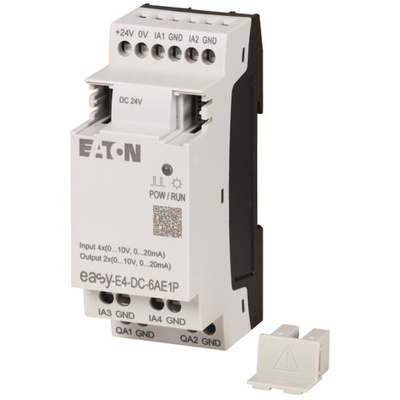

197516 EASY-E4-DC-6AE1P, Eaton EasyE4 Series Control Relay, 4-Input, Analog Input

The I/O expansion for control relays in the easyE4 series with a rated operating voltage of 24 VDC. This expansion provides: 4 analog inputs that can be used as either voltage inputs (0–10 V) or current inputs (0/4–20 mA) and 2 analog outputs that can be used as either voltage outputs (0–10 V) or current outputs (0/4–20 mA). Connections are established using push-in terminals.

Software EASYSOFT-SWLIC/easySoft 7
Dimensions 35.5 x 90 x 58 mm
Connection type push-in terminals
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2
Protection against polarity reversal
Input current maximum 100 mA at Ue
Accuracy 1 %

Note

Eaton formerly known as Moeller

Datasheet - 197516
