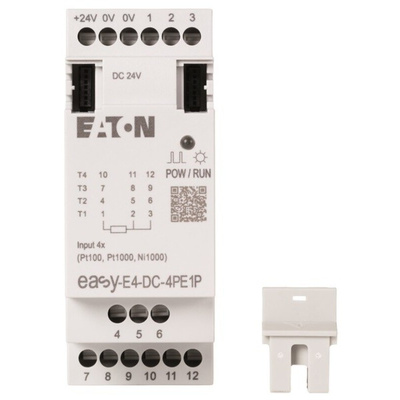

197517 EASY-E4-DC-4PE1P, Eaton EasyE4 Series Control Relay, Relay Output, 4-Input, Analog Input

The I/O expansion for control relays in the easyE4 series with a rated operating voltage of 24 VDC. This expansion provides 4 analog inputs that can be used for the Pt100, Pt1000 or Ni1000 resistance temperature detectors. The Pt100, Pt1000 or Ni1000 inputs are suitable for two- and three-wire connections. Connections are established using push-in terminals.

Display with diagnostic LED
Software EASYSOFT-SWLIC/easySoft 7
Dimensions 35.5 x 90 x 58 mm
Connection type push-in terminals
Operating ambient temperature -25 to 55 °C
Protection type (IEC/EN 60529, EN50178, VBG 4) IP20
Mounting position vertical or horizontal
Overvoltage category/pollution degree III/2
Accuracy 1 %

Note

Eaton formerly known as Moeller

Datasheet - 197517
