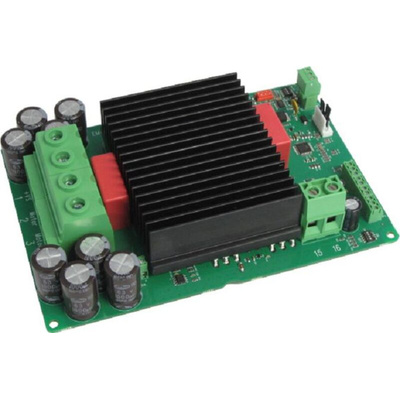

EM-282-D, Electromen OY 1.5 kW DC Motor Controller, 12 → 48 V, 1 Phase, 100 A, PWM, Speed Controller Function, 60 V

The Electromen OY DC motor controller is designed to work with DC-motor in applications where a variety of special functions and settings are needed. It requires supply voltage from 12 to 48Vdc. This controller has an adjustable acceleration and deceleration ramps enabling the smooth starts and stops. Adjustable current limit protects motor against overcurrent. The FW and BW inputs control the forward and backward run. STOP input is to stop the motor but there are also available individual limit inputs for FW and BW direction end stops that will cause a motor shut-down. SPEED-2 input activates the pre settable speed-2, but it can also be set for use as an analogue speed control input. FAULT terminal operates same time as an input and output. Fault line is internally pulled, but will be pulled down in overheat or conditionally also in current trip situation.

For motors up to 1.5kW
High current output
Brake load output
Zero-current limit
Speed setting/adjustment
Flexible control inputs
Impulse/continuous mode
Rail base mountable
Digital parameter setting
C versions program
2/16kHz PWM frequency options
Freewheel options
Auto reverse option
Running indication options
Expanded input logic options
CE-tested for industrial environment

Datasheet - EM-282-D
