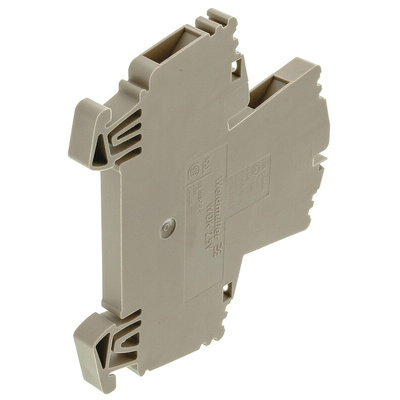

1022300000, Weidmuller WDK Series Dark Beige Double Level Terminal Block, 2.5mm², Double-Level, Screw Termination, ATEX, IECEx

Double Deck Terminal

A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper and lower tiers.

All materials comply with RoHS requirements and have been tested to current environment guidelines.

Options include
779-598 – WDK 2.5 Double Level Terminal Block
235-5239 – WDK 2.5V Double Level Terminal Block
131-6700 - W End Plate for Terminal Block

Features:

• Continuous operating temperature: -50 °C to 120 °C
• Material: Wemid

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Weidmuller Double-Level Terminal Block, Feed-Through, 24A Current Rating - WDK Series - 1022300000

When you need to join two conductors together, feed them through this double-level terminal block from Weidmuller. Thanks to its two-tiered structure, this unit has enough room to neatly house two wires, keeping your cabinet as neat as a pin. A current rating of 24A means it's always up to the task for your heavy-duty electrical systems. Its Wemid body provides effective insulation to ensure you're in safe hands when setting up your connection. Mounting this terminal block is a cinch as you'll simply need to snap it onto your DIN rail.

• Rated impulse withstand voltage of 6kV for protection against powerful surges
• Minimal power loss of 0.77W for energy efficiency
• Wide operating temperature range between -60°C and +130°C to withstand harsh industrial environments

Applications

• Electrical engineering
• Lighting fixtures
• Telecommunications
• Power stations
• Control cabinets

How do I attach my cables to this terminal block?

To attach your wires to this terminal block, strip off their outer jackets and use the built-in screw clamp to tighten them to the terminal points.

What wire sizes can I fit into this terminal block?

You can fit wires ranging in size from 30 to 12AWG into this terminal block, making it a versatile option.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
