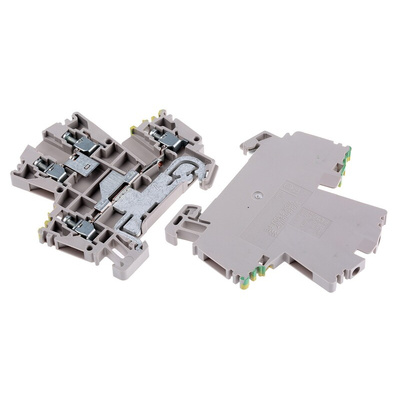

1036400000, Weidmüller Weidmuller 4 Way Screw Down WDK 2.5DU-PE Double Deck, 69.5mm Length 22 → 12 AWG, Блок заземления

Double Deck and Earth

Dimensionally the same as the standard Double Deck (uses the same end cover), this version includes an upper tier with standard feed through and a bottom tier which is connected to the DIN rail by an earth foot. Terminal has standard green/yellow markings on bottom tier.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
