9528110000, Weidmuller KDKS Series Beige Fused DIN Rail Terminal, Double-Level, Screw Termination, Fused

Fused, Feedthrough and Earth

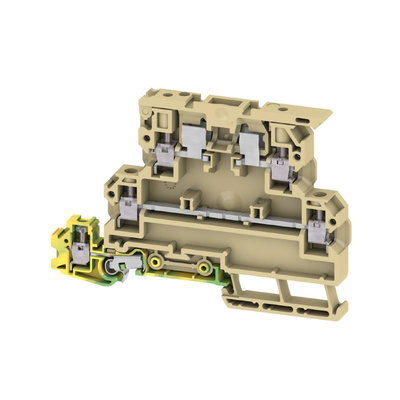

This flexible terminal block enables a fuse connection via the top level, a straight feedthrough middle level and, on the KDKS1/PE, an earth connection to the DIN rail by the bottom level. Fuse of 20x5mm or 25x5mm may be fitted.

Note

The voltage and current ratings are to VDE ratings.

Warning

With full blown fuse the follow on circuit is still under current. Disconnect lever to open circuit.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

Approvals

UL

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
