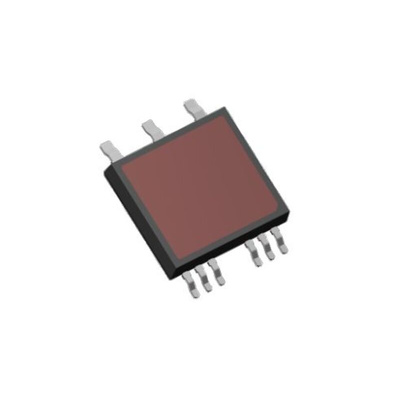

The STMicroelectronics automotive grade thyristor(SCR) is designed for applications such as automotive and stationary battery chargers. This thyristor is rated for a 60 A RMS power switching, offers superior performances in peak voltage robustness up to 1200 V and surge current handling up to 600 A sine wave pulse. Its key features allow the design of functions such as AC switch and AC-DC controlled rectifier-bridge. It is available in A-SMIT package and ideal for a maximum thermal performance.
AEC-Q101 qualified
High junction temperature: 150 °C
AC off state voltage +/- 1200 V
Nominal on-state RMS current 60 ARMS
High noise immunity 1000 V/μs
Max. gate triggering current 50 mA
Applications
On board, off board Automotive battery charger
AC DC voltage controlled rectifier
Solar and wind renewable energy inverters / rectifiers
Solid state relays
UPS: Bypass SSR
inrush current limiter ICL in AC DC rectifier
Datasheet - STTN6050H-12M1Y| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
