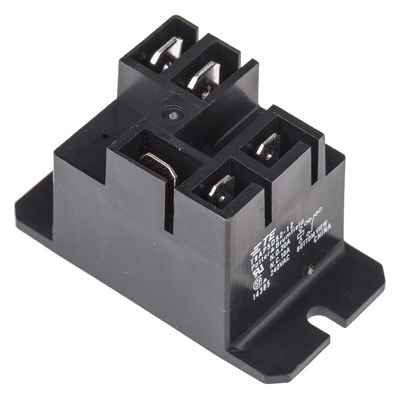

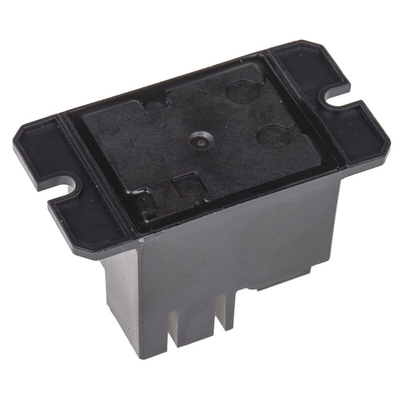

T9AP5D52-12 5-1419102-4, TE Connectivity Flange Mount Power Relay, 12V dc Coil, 20A Switching Current, SPDT, Реле

TE Connectivity Non-latching Relay

The TE Connectivity T9A series flange mount general-purpose power relay has a contact configuration of SPDT. This 4.75mm quick-connect relay is actuated with 12VDC coil voltage and 30A switching current. This relay has a high breaking capacity of 7500VA and quick-connect terminal.

Features and Benefits

Coil resistance is 144ohm
Dimensions are: height = 27.94mm, width = 27.43mm, depth = 50.29mm Contact material is silver cadmium oxide (AgCdO)
Meets UL873 and UL508 spacing - 1/8in through air, in over surface
Operating temperature ranges between -55°C and 65°C
T9AS type is immersion washable
UL class F insulation system standard

Certifications

CSA certified
UL listed

Approvals

UL; CSA

T9A-Series DC Coil PC Board or Panel Mount Relay
