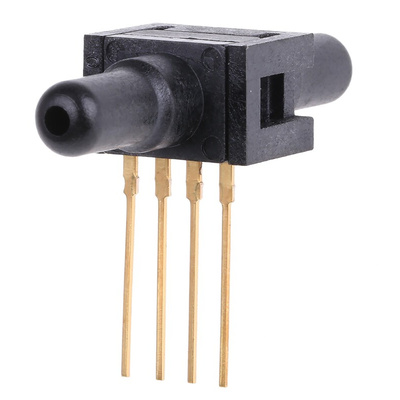

24PCBFA6D, Honeywell Differential Pressure Sensor, 5psi Max Pressure Reading , 10 V dc, Датчик давления

2355813
Номер производителя: 24PCBFA6DПроизводитель: Honeywell
Цена за шт.
13797.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 50+
Цена 11673.00 руб. 11022.00 руб. 10335.00 руб. 9891.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Honeywell 24PC/26PC Series Low Pressure Sensors

These miniature Surface Mount Technology (SMT) Low Pressure Sensors are small, cost effective devices intended for use with wet/wet differential sensing. Based on the long established reliability and accuracy of the single in-line package, the SMT version’s smaller configuration reduces the footprint area on the printed circuit board thereby reducing overall PCB size and cost. The sensor is capable of being board-mounted with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing productivity.

The 24PC/26PC sensors feature proven sensing technology that uses a specialized piezo-resistive micro-machined sensing element to offer high performance, reliability, and accuracy. Both sensor series are unamplified but the 26PC series are temperature compensated. The sensors can be used with a wide variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and media seals and they are designed to measure pressures from ±1 to ±15 psi over an operating temperature range of -40 to 85 ºC.

• Compact SMT mounting package
• Wet/Wet capability (i.e. liquids on both ports)
• 24PC Series: Uncompensated/Unamplified
• 26PC Series: Compensated/Unamplified
• RoHS compliant
• Designed and manufactured according to ISO 9001 standards

Pressure Sensors, Honeywell

Техническая спецификация
pdfPressure Sensors Gage and Differential/Unamplified-Noncompensated
pdfBedienungshandbuch(Multi)
Аналоговый выход:
85 → 145 мВ
Время отклика:
1 мс
Измерение информации:
Газообразный азот, Кислород, Вода
Максимальное воздействие считывания:
5psi
Минимальное воздействие считывания:
0psi
Напряжение питания:
10 В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Тип воздействия считывания:
Дифференциальный
Тип выхода:
Unamplified
Точность:
0.2 %
Электрическое соединение:
Solder Tag
