RS PRO Horizontal Stainless Steel Float Switch, Float, 300mm Cable, Direct Load, 300V ac Max, 300V dc Max

RS PRO Horizontal Float Switch, Stainless Steel, Direct Load, Float, 300 mm, 300 V

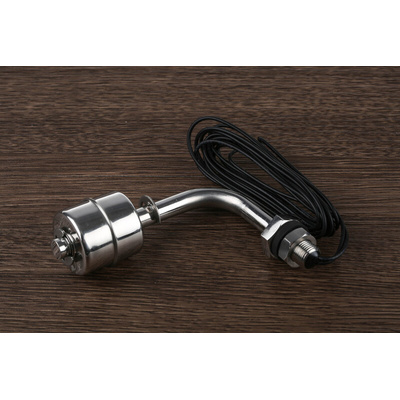

This RS PRO float switch detects the rise or fall of liquid in tanks or other containers. It will trigger a pump, alarm or some other peripheral device when it reaches a certain level.

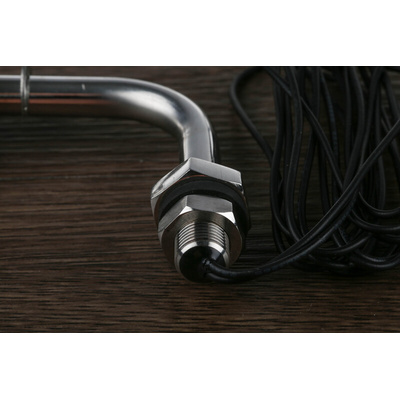

The switch mounts horizontally and the unit's right-angled stem makes it suitable for shallower environments. This also means you can mount it at the top or bottom of your tank. With a direct-load, single-pole, single-throw (SPST) output, there's one input and output terminal – useful for simple on-off switches. It features a robust 300 mm cross-linked polyurethane (XLPE) cable and has an internal wire size of 22 AWG.

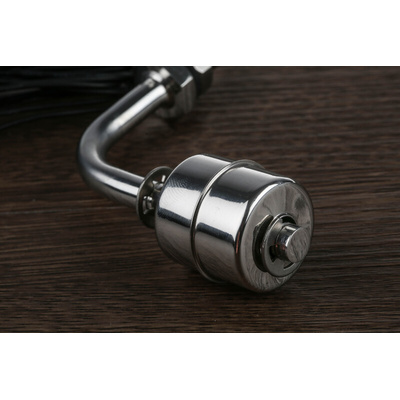

A durable silicone washer prevents the float from leaking and it has a corrosion-resistant stainless steel body. The device will operate safely from -10°C to +120°C. It can work with AC and DC voltage up to 300 V, current up to 500 mA and pressure of 10 bar Kg/cm².

Features and Benefits

• Horizontal, internal tank mount (top/bottom)

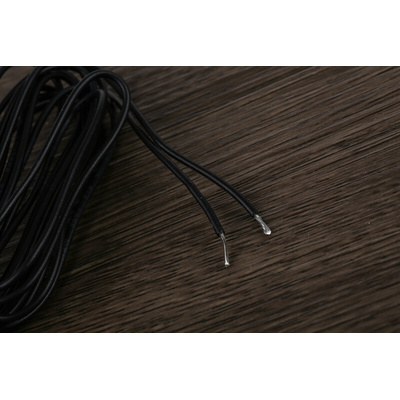

• XLPE cable of 300 mm for durability and heat resistance
• Internal wire size of 22 AWG
• Contact resistance of 200 mΩ
• Minimum operating temperature of -10°C
• Maximum operating temperature of +120°C
• Voltage rating of 300 V
• Maximum current of 500 mA
• Maximum pressure of 10 bar Kg/cm²
• Direct load switch
• Stainless steel body
• Cable length of 300 mm
• Warning: don't submerge cable entry point. Fit the switch through the wall of the tank with the cable outside
