RS PRO Single, Portable Hollow Plunger Hydraulic Cylinders, 60t, 100mm stroke

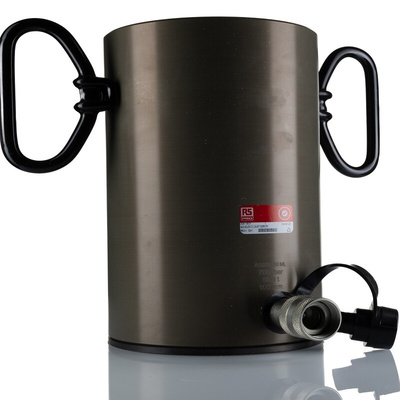

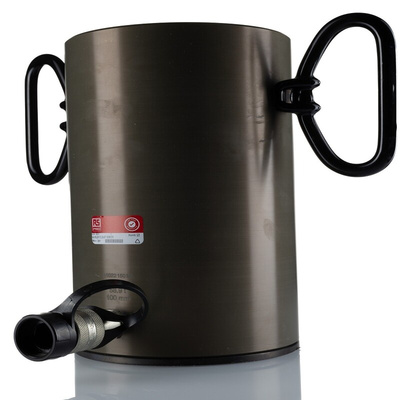

RS PRO Aluminium Single Action Hollow Plunger Hydraulic Cylinder 700 bar 60 Ton Capacity.

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action hollow plunger hydraulic cylinder, also known as centre hole cylinders. This single action plunger has a 60-ton capacity with a 100 mm stroke, made from aluminium so is lightweight weighing 40% less than a steel cylinder, plus includes handles for safe transport and mounts to a steel base plate. Excellent for pushing and pulling, tensioning for bolts and cables plus removing bearings and bushings. This single action hydraulic cylinder includes one female quick coupler and please note that if a coupler has to be installed on the cylinder you must use Teflon around the male 3/8 NPT thread.

RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hollow hydraulic cylinders are available as single action spring return or double action controlled plunger return.

Features & Benefits

• 60 Ton capacity,


• 100 mm Stroke.


• Made from hard anodized aluminium.


• Lightweight.


• 1 x Female quick coupler.


• Standard hollow plain saddle.


• Mounts to a steel base plate.


• Cylinder bore 125 mm.


• Plunger 95 mm.


• Bolt circle 155 mm.


• M6 base hole thread 19 mm.

Applications

• Tensioning of bolts and cables.


• Bearing and bushing removal.


• This Hydraulic Cylinder is NOT suitable for applications with a high number of cycles.

What is a Hydraulic Cylinder?

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

CE, UKCA

Standards

eCl@ss, UNSPSC
