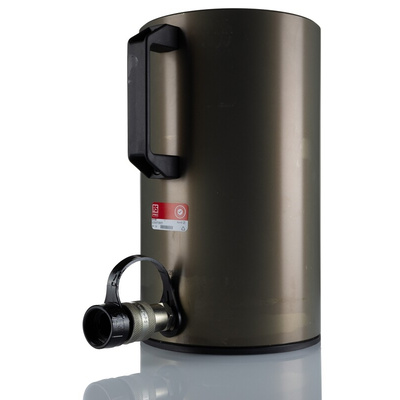

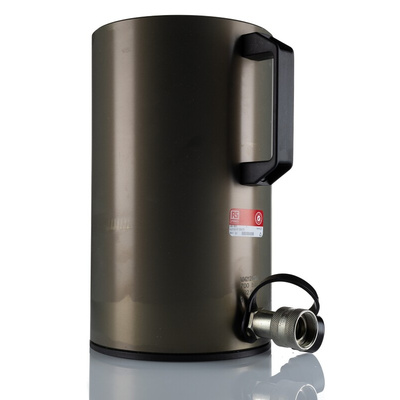

RS PRO Single, Portable General Purpose Hydraulic Cylinder, 100t, 150mm stroke

RS PRO Aluminium Single Action General Purpose Plunger Hydraulic Cylinder 700 bar 100 Ton Capacity

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action general purpose hydraulic cylinder, also known as centre hole cylinders. This single action plunger has a 100-ton capacity with a 150 mm stroke, made from aluminium so is lightweight weighing 40% less than a steel cylinder, plus includes handles for safe transport and mounts to a steel base plate. This single action hydraulic cylinder includes one female quick coupler and please note that if a coupler needs installing on the cylinder you must use Teflon around the male 3/8 NPT thread. RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action, controlled plunger return.

Features & Benefits

• 100 Ton capacity


• 150 mm Stroke


• Made from hard anodized aluminium


• Lightweight


• 1 x Female quick coupler


• Standard plain saddle


• Mounts to a steel base plate


• Cylinder bore 130 mm


• Plunger 110 mm


• Saddle 88 mm


• Bolt circle 160 mm


• M6 base hole thread 19 mm

Applications

All general industrial applications.

What is a Hydraulic Cylinder?

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
