RS PRO Single, Portable Hollow Plunger Hydraulic Cylinders, 12t, 80mm stroke

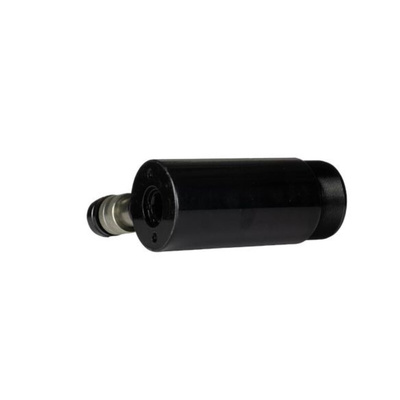

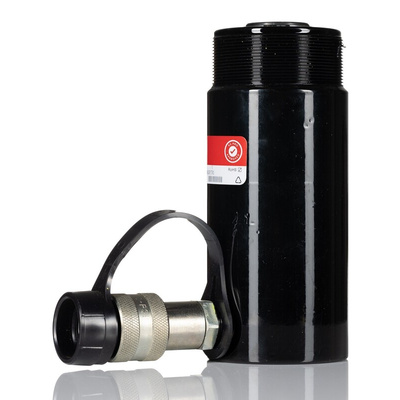

RS PRO Steel Single Action Hollow Plunger Hydraulic Cylinder 700 bar 12 Ton Capacity

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action hollow hydraulic cylinder, also known as centre hole cylinders. This single action plunger has a 12-ton capacity with a 76 mm stroke, made from chrome plated steel, plus, has a spring return with cylinder body threads with base and plunger fixing holes. This single action hollow hydraulic cylinder includes one female quick coupler and please note that if a coupler requires installation to the cylinder, you must use Teflon around the male 3/8 NPT thread. RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action, controlled plunger return.

Features & Benefits

• 12 Ton capacity


• 76 mm Stroke


• Made from chrome plated steel


• 1 x Female quick coupler


• Standard hollow plain saddle


• Cylinder bore 55 mm


• Plunger 40 mm


• Saddle 34 mm


• Bolt circle 51 mm


• 5/16 inch base hole thread 18 mm, thread length 12 mm

Applications

• Pushing and pulling


• Tensioning of bolts and cables


• Bearings and Bushing removal

What is a Hydraulic Cylinder?

Oil capacity is 134 cm²
Threads on body, plunger and base holes for it's fixation
Chrome-plated hollow plunger, spring return
Standard plain hollow saddle, optional solid or threaded saddle

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.
