RS PRO Single, Portable Low Height Hydraulic Cylinder, 10t, 11mm stroke

RS PRO Steel Single Action Low Profile Plunger Hydraulic Cylinder 700 bar 10 Ton Capacity

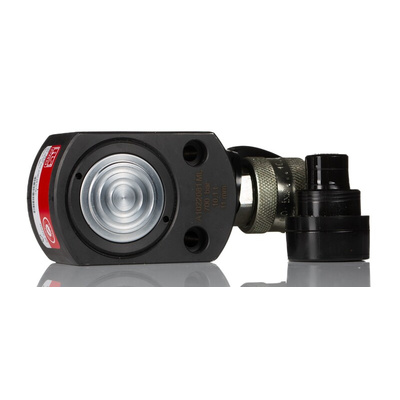

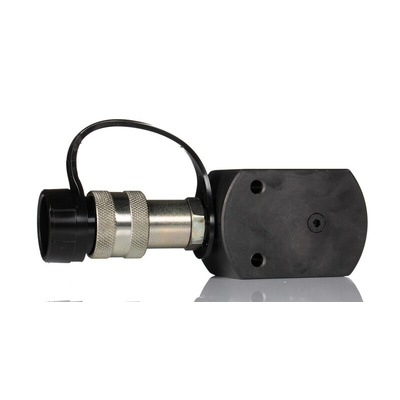

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action solid low profile plunger hydraulic cylinder, also known as centre hole cylinders. This single action solid plunger has a 10-ton capacity with a 11 mm stroke, made from steel, plus, has a spring return with through fixing holes and two parallel sides for horizontal positioning. This single action solid plunger hydraulic cylinder includes one female quick coupler and please note that if a coupler requires installation to the cylinder, you must use Teflon around the male 3/8 NPT thread. RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action, controlled plunger return.

Features & Benefits

• 10 Ton capacity


• 11 mm Stroke


• Low profile


• Made from nitride steel with chrome plated plunger and scraper


• two parallel sides for horizontal positioning


• Through hole fixing


• No handles

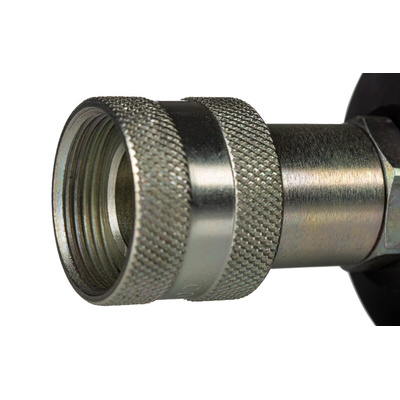

• 1 x Female quick coupler


• Standard plain saddle


• Cylinder bore 43 mm


• Plunger 38 mm


• Fixing holes 6.5 mm


• Corrosion and wear resistant


• Cylinder width 56 mm

Applications

• Low profile applications


• Confined spaces


• Machine movement


• Fixture clamping


• Load testing

What is a Hydraulic Cylinder?

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.
