RS PRO Single, Portable General Purpose Hydraulic Cylinder, 45t, 45mm stroke

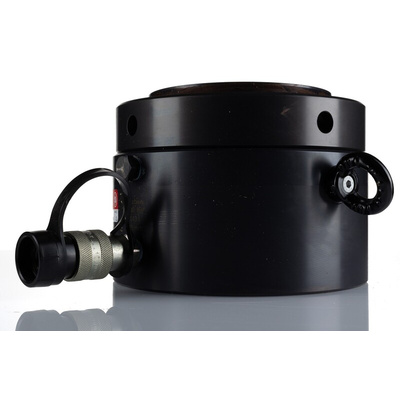

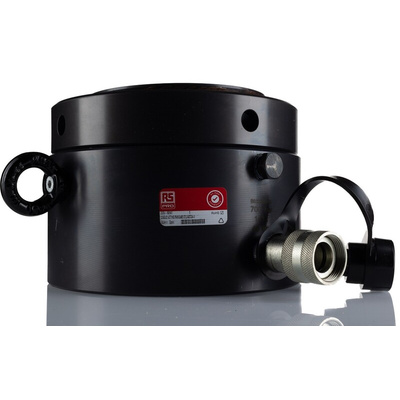

RS PRO Steel Single Action Low Return Solid Plunger Hydraulic Cylinder 700 bar 144 Ton Capacity

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action solid low return plunger hydraulic cylinder, also known as centre hole cylinders. This single action solid plunger has a 144-ton capacity with a 45 mm stroke, made from steel, plus, has a load return, locking nut tested to under 50% overload, hydraulic limit switch and an integrated tilting head. This single action solid plunger hydraulic cylinder includes one female quick coupler and please note that if a coupler requires installation to the cylinder, you must use Teflon around the male 3/8 NPT thread. RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action, controlled plunger return.

Features & Benefits

• 144 Ton capacity


• 45 mm Stroke


• Low return


• Made from nitride steel


• Load return locking nut tested under 5% overload


• Locking nut supports the load for long periods of time


• Hydraulic limit switch, No guide stop


• Integrated tilting head, improved lateral load behaviour


• With handles and lifting eyes, mobile


• 1 x Female quick coupler


• Standard plain saddle


• Cylinder bore 160 mm


• Plunger Tr 160 x 6 mm


• Saddle 148 mm


• Corrosion and wear resistant


• Lock nut height 38 mm

Applications

• Low profile applications


• Extra flat cylinders used in applications for load holding for long periods


• Confined spaces


• Machine movement


• Fixture clamping


• Load testing

What is a Hydraulic Cylinder?

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.
