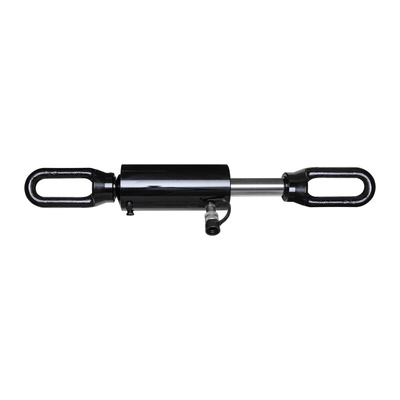

RS PRO Single, Portable General Purpose Hydraulic Cylinder, 10t, 150mm stroke

RS PRO Steel Single Action Load Return Solid Plunger Hydraulic Cylinder 700 bar 10 Ton Capacity

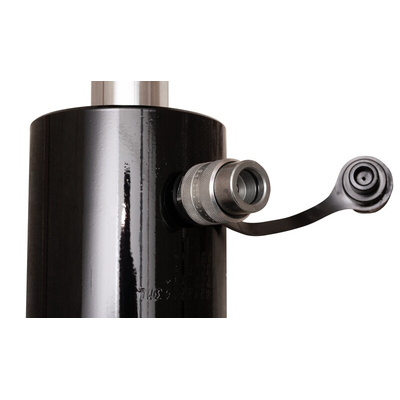

From the extensive RS PRO Hydraulic Tools range, we offer you the RS PRO Single action solid load return plunger hydraulic cylinder, also known as centre hole cylinders. This single action solid plunger has a 10-ton capacity with a 150 mm stroke, made from steel, plus, has a load spring return. This single action solid plunger hydraulic cylinder includes one female quick coupler and please note that if a coupler requires installation to the cylinder, you must use Teflon around the male 3/8 NPT thread. RS PRO offer you an impressive range of hydraulic Cylinders helping you to tailor your hydraulic systems providing adaptable, safe, and versatile solutions for tensioning, testing, pulling, and lifting. Our hydraulic cylinders are available as single action spring return or double action, controlled plunger return.

Features & Benefits

• 10 Ton capacity


• 150 mm Stroke


• Load return


• Made from nitride steel


• Spring return, simple action cylinders


• With handles


• 1 x Female quick coupler


• Standard plain saddle


• Cylinder bore 55 mm


• Plunger Tr 160 x 6 mm


• Outside diameter 86 mm


• Pull link 30.5 mm


• Corrosion and wear resistant

Applications

• Pulling applications


• Low profile


• Machine movement


• Fixture clamping


• Load testing


• Attracting rims for welding


• Cable tensioning

What is a Hydraulic Cylinder?

Hydraulic cylinders are also known as a linear hydraulic motor. They are a mechanical actuator used to provide unidirectional force through unidirectional stroke. The power to the cylinder is provided from pressurised hydraulic fluid. Normally oil is used as the hydraulic fluid. Single acting cylinders are the simplest, hydraulic fluid pushed through into the cylinder through a port extending the rod then the rod returns to its previous position, spring action. A Double action cylinder has a port at each end of the piston and the hydraulic fluid then extends and retracts the piston, faster and more controlled.
