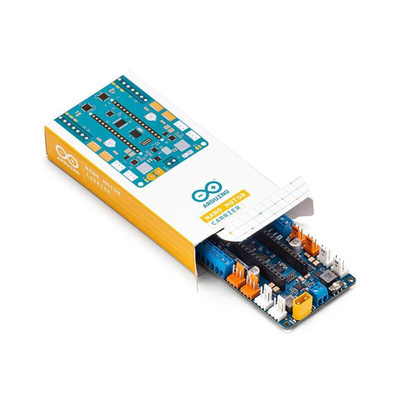

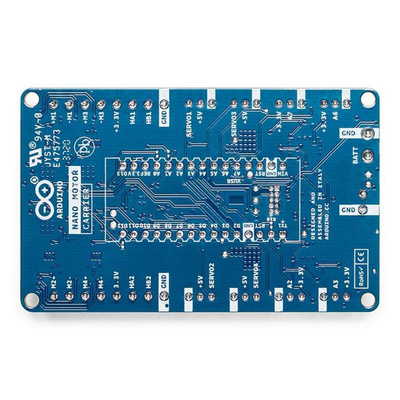

ABX00041, Arduino Nano Motor Carrier

Nano motor carrier is the perfect add-on for the Nano 33 IoT board as it works to extend and power up its functionality.

Designed to facilitate motor control, Nano motor carrier takes care of the electronics required to control motors, allowing students to focus on prototyping and building their projects
It can also be used to connect other actuators and sensors via a series of 3-pin male headers

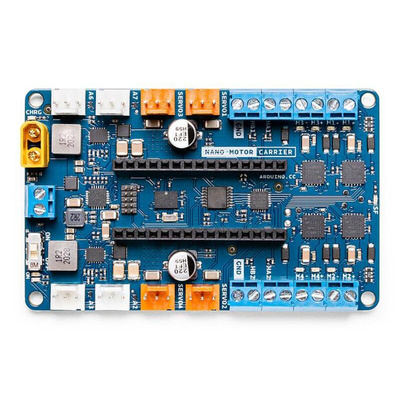

The board features are on board 9 axis accelerometer, gyroscope and magnetometer. It includes a battery charger for single cell Li-ion batteries and it contains 2 ports for quadrature encoder counting

To use the carrier, simply connect it to a Nano 33 board and attach the motors you need for your project. Once connected, attach the USB cable to the Nano 33 IoT. Download Arduino motor carrier library from the library manager and you’re all set up to start programming and controlling your motors using the motor drivers.

Technical Specifications

Microcontroller ATSAMD11 ( Arm Cortex-M0+ @48 MHz)
Motor drivers MP6522
Input voltage 4V (1S Li-Ion Battery)
Output current pre motor driver 500Amp
Motor driver output voltage 12V

When working with motors, you need an external power source to feed the motor drivers and power the motors. You can do this by connecting a 1 cell Li-Ion battery to the battery connector or by using an external power source.

Datasheet - ABX00041
