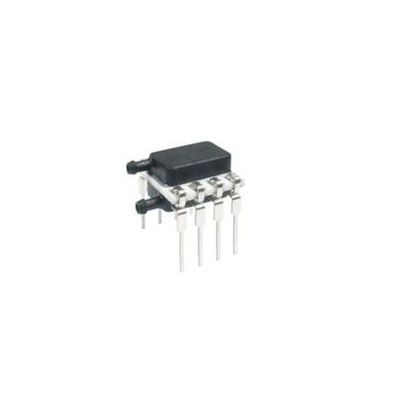

HSCDRRD006MGSA3, Honeywell Piezoresistive Pressure Sensor, 6kPa Operating Max, Through-Hole Mount, 8-Pin, 60kPa Overload Max, DIP

The Honeywell TruStability high accuracy silicon ceramic (HSC) series is a piezoresistive silicon pressure sensor offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. It is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an on-board Application Specific Integrated Circuit (ASIC). It has calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. These sensor measure absolute, gage, or differential pressures. The absolute version have an internal vacuum reference and an output value proportional to absolute pressure, Gage version are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere AND differential version allow measurement of pressure between the two pressure ports.

High burst pressures
High working pressure ranges
Industry-leading flexibility
Extremely low power consumption
Stability and reliability
Energy efficient
Small size

Datasheet - HSCDRRD006MGSA3
