03-06-1022, Molex, STANDARD .062" Female Connector Housing, 3.68mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex Connector Housing, Straight Orientation, 8.64mm Length - 1625 Series - 03-06-1022

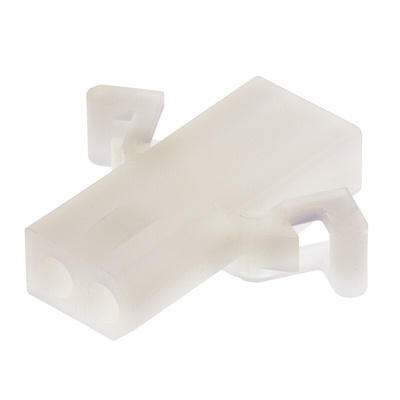

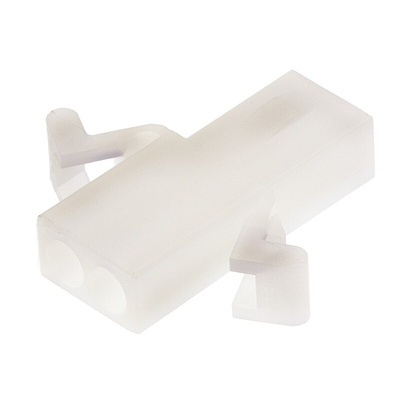

Simplify power and wire-to-wire connections with this female connector housing from Molex. The pluggable component is easily compatible with other devices in the 1625 series pin and socket system. A friction lock clips it securely to a compatible male connector for quick assembly and maintenance of electrical circuits. The housing features polarised mating to reduce wiring errors, while pre-bent ears support easy mounting on panels.

Features & Benefits

• Wide operating temperature range between -40°C and +105°C for use in demanding environments
• Polyamide construction makes it strong and resistant to wear
• Low-halogen and flame-retardant to improve fire safety of electrical wiring
• Accommodates male or female crimp terminals for versatility

Applications

• Communications networking
• Servers and racks
• Automotive industry
• White goods

How many circuits does this housing connect?

This connector housing has two contacts arranged in one row, so it's capable of connecting two circuits.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.

Line Drawing

Datasheet - 03-06-1022

Product Specification Sheet - 03-06-1022
