02-06-1103, Molex STANDARD .062" Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Molex Standard .062" Crimp Terminal Contacts & Tools

A range of 1.57mm Diameter Standard .062" Pin and Socket Crimp Terminal contacts available as gold-plated or tinned versions for use with receptacles housings stock number 236-2928 typically and for plug housings 236-2984 typically

Features:

• Shell Material: Nylon UL 94-V2
• Colour: Neutral (natural nylon)
• Current Rating: 5V
• Voltage: 250V
• 1 to 36 circuit housing
• Passive (friction) lock
• Round terminals may be oriented in any direction

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Note

See stock number 501-051 for Ratcheting Hand Crimp Tool.
See stock number 710-6499 for none ratchet type Hand Crimp Tool.
See stock number 178-6935 for Insertion Tool.
See stock number 178-6957 for Extraction Tool.

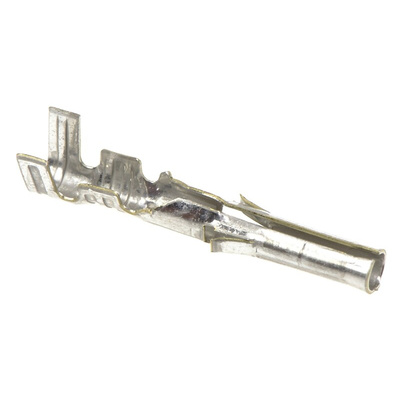

Molex Crimp Terminal, Pin and Socket Contact Type, Female Gender - 76410 Series - 02-06-1101

Get connected with this Molex 0.062-inch female crimp terminal. Its socket design accepts male terminals that allow you to make electrical connections in a jiffy. Simply slot a stranded conductor into the unit and compress them both together with a crimper to achieve a high-integrity join. As it supports a broad range of wire sizes between 24 and 18AWG, this is a versatile choice. It's made of tin-plated brass, so you can rest easy knowing it's rust-resistant and can hold its own in humid environments.

Features & Benefits

• Light weight of 11g keeps your circuit free of unnecessary load
• Narrow diameter of 1.57mm shows it's a space-saving component
• Low-halogen type to limit toxic emissions in the event of a fire

Applications

• Automotive industry
• Assembly lines
• Military equipment

How many terminals come in a pack?

This crimp terminal comes in a pack of 100 units to meet the demands of large-scale circuit building.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.
