19-09-1029, Molex, STANDARD .093" Female Connector Housing, 6.7mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex 3191 Series Housings

The 3191 Series of 6.70 mm pitch receptacle housings from Molex, accept industry standard 2.36mm diameter .093” male pin and female socket connectors. Suitable for use in medium power applications such as refrigerators and microwaves, as well as data communications such as desktop computers, motherboards and hard disc drives.

Features and Benefits

• 6.70 pitch
• Wire to board and wire to wire configurations and fittings
• Dual and single row housing
• Natural colour
• Positive locking
• Fully isolated terminals
• Polarised to ensure secure mating

For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket plug housings - stock number 236-3117 typically and series 5219 2.36mm diameter standard .093" pin and pocket headers - stock number 670-0282 typically.
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Note

For crimps see 670-1847 and 670-2248 and range, Crimp tool see 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

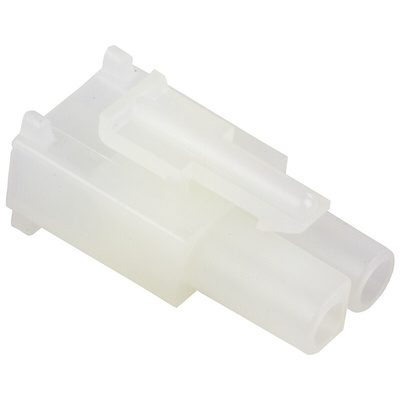

Molex Female Connector Housing, 2 Way, 1 Row - STANDARD .093" Series - 19-09-1029

This two-way, single-row receptacle housing from Molex fits standard 2.36mm diameter male pin and female socket connectors. It's an effective choice for wire-to-wire and wire-to-board connections. The unit's positive locking technology ensures a secure hold with fully isolated terminals and undisturbed joins. The polarised mating piece ensures the correct orientation, while the nylon construction is lightweight and offers a safe hold. As this is rated as a low halogen component, it poses reduced risk of releasing toxic fumes in the event of fire or excessive heat.

Features & Benefits

• Straight body orientation for easy installation
• Depth of 29.9mm and length of 14.3mm to use with a wide range of connectors
• Durable construction ensures a long service life
• Includes two contacts for a more reliable connection

Applications

• Household appliances
• Computers and data-communications systems
• Industrial automation

How do I mount this component?

This connector mounts directly onto the cable you want it to terminate. This provides a clean and secure mount that makes it easy to see where your connections lead.

Approvals

UL (E29179); CSA (LR 19980); EAMCL
