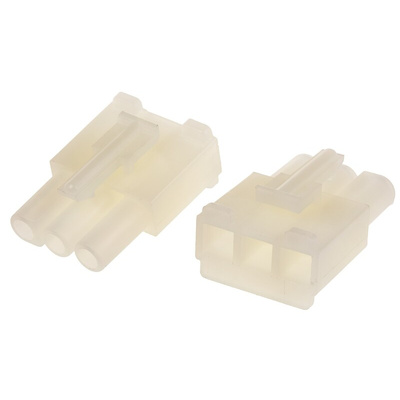

39-03-6034, Molex, STANDARD .093" Female Connector Housing, 6.7mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex 3191 Series Housings

The 3191 Series of 6.70 mm pitch receptacle housings from Molex, accept industry standard 2.36mm diameter .093” male pin and female socket connectors. Suitable for use in medium power applications such as refrigerators and microwaves, as well as data communications such as desktop computers, motherboards and hard disc drives.

Features and Benefits

• 6.70 pitch
• Wire to board and wire to wire configurations and fittings
• Dual and single row housing
• Natural colour
• Positive locking
• Fully isolated terminals
• Polarised to ensure secure mating

For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket plug housings - stock number 236-3117 typically and series 5219 2.36mm diameter standard .093" pin and pocket headers - stock number 670-0282 typically.
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Note

For crimps see 670-1847 and 670-2248 and range, Crimp tool see 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Female Connector Housing, 6.7mm Pitch, 7.6mm Width - STANDARD .093" Series - 39-03-6034

Use this crimp connector housing from Molex to link cables to your printed circuit boards (PCBs). The component is moulded to accommodate a wide range of male crimp terminals, so it's a versatile choice for different circuit types. Its nylon housing is durable and resistant to impact, making it suitable for use in harsh environments. A pitch of 6.7mm provides a safe distance to stop conductors from touching each other, preventing short circuits. You'll find connector housings like this one used extensively in the electronics industry.

• Broad operating temperature range of -40°C to +105°C for use in demanding conditions
• Compact dimensions of 21 (L) x 7.6 (W) x 29.9mm (D) for use in setups with limited space
• Integrated lock for a secure attachment to the PCB
• Polarised design to prevent incorrect mating
• Light weight of 3g for easy handling

Applications

• Robotics and automation
• Personal computers
• Automotive equipment

Is this connector housing flame-resistant?

This connector has a housing that stops burning within 60 seconds when exposed to fire. This means that it's flame-resistant and can help reduce the spread of fire.

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

Line Drawing - 39-03-6034

Specification Sheet - Wire to Wire Connector Series
