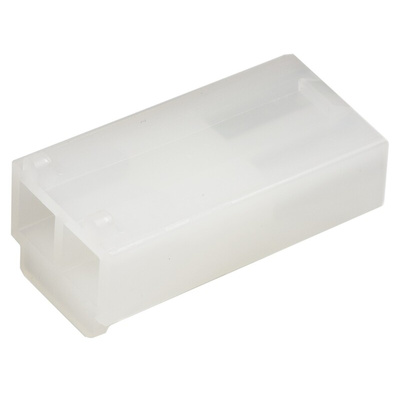

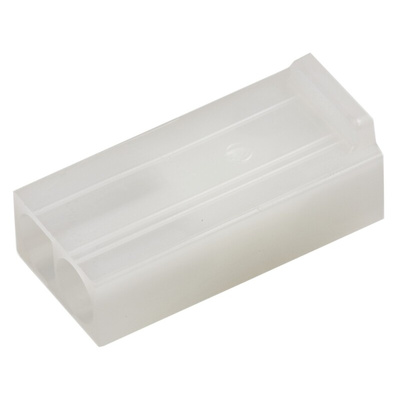

19-09-2029, Molex, STANDARD .093" Male Connector Housing, 6.7mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Male Connector Housing, 2 Way, 1 Row - STANDARD .093" Series - 19-09-2029

Use this two-way receptacle housing from Molex with all standard 2.36mm male pin connectors. It's ideal for making wire-to-wire connections, as it has a positive locking feature to ensure it stays securely on the connector. A polarised mating part means you'll always have the correct orientation. The unit's lightweight nylon material makes for a fire-safe choice as it burns out within 30 seconds if it catches fire, for enhanced safety.

Features & Benefits

• Includes two contacts for a stronger connection
• Cable mounting allows for easy and quick positioning
• Straight body orientation makes it easy to slot into place on your cable
• Low halogen content limits the risk of releasing toxic fumes in the event of excessive heat or fire

Applications

• Computer hardware and networks
• Data communications
• Household appliances
• Automotive industry

Is there a risk of this connector releasing toxic fumes in a fire?

Unlike some nylons and plastics, this component has been certified to contain low levels of halogen, so it won't release toxic fumes if it melts or burns.

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

Datasheet

Line Drawing
