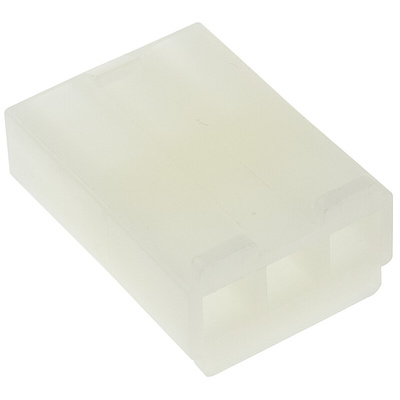

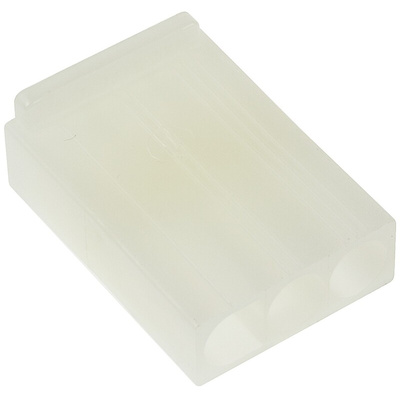

39-03-6032, Molex 3191 Series Straight Free Hanging Housing Plug, 3 Contact(s), 6.7mm Pitch, 1 Row(s)

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Housing Plug, 2.36mm Diameter, 6.7mm Mating Interface Pitch - 3191 Series - 39-03-6032

Want a fuss-free way to make connections on a PCB? Pick this housing plug from Molex. It lets you wire up to three circuits to your PCB when paired with 2.36mm pin-and-socket connectors. A positive-latching design means you can be sure of a secure hold. Thanks to its broad operating temperature range between -40°C and +105°C, this unit won't wilt under the demands of harsh settings.

Features & Benefits

• Low-halogen construction to limit harmful emissions in the event of a fire
• 11A maximum current per contact so it's suitable for powerful electrical systems
• 6.7mm pitch means plenty of space for wiring
• Lightweight at 3.35g, so it puts minimal drag on your PCB

Applications

• Consumer electronics
• Automotive sector
• Computer peripherals

How do I know if I'm mating the plug and connectors correctly?

This housing plug is polarised to its mating part, so it's impossible to mate incorrectly.
