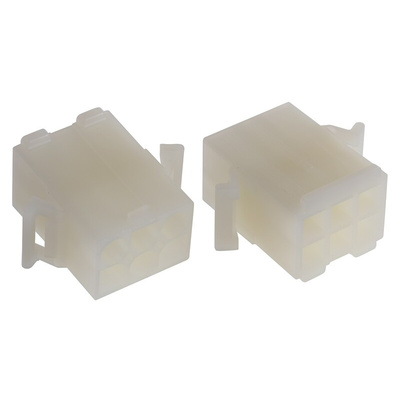

39-03-6060, Molex STANDARD .093" Series Straight Panel Mount Housing Plug, 6 Contact(s), 6.7mm Pitch, 2 Row(s)

2363202
Номер производителя: 39-03-6060Производитель: Molex
Цена за шт. (норма упаковки 5 шт)
159.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex 2.36mm Diameter Standard .093" Pin and Socket Plug Housings - 3191 Series

3191 series 6.71mm pitch plug housings that accept industry standard 2.36mm diameter .093" male pin and female socket terminals. These 2.36mm pin and socket plug housings are made from 94V-2 nylon, have positive locking, fully isolated terminals and are polarized to ensure secure mating. Stock number 236-3173 also has pre-bent mounting ears. These 3191 series industry standard 2.36mm diameter .093" pin and socket plug housings are suitable for use in medium power applications ie consumer devices such as refigerators and microwave ovens, data communications applications ie desktop computers, motherboards and HDDs.
For mating connectors see series 3191 2.36mm diameter standard .093" pin and pocket receptacle housings - stock number 236-3066 typically
For .093" crimp terminals see stock number 670-1847 and 670-2248 typically
For crimp tool see stock number 501-045

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Straight Terminal Block Plug, 6 Ways, 2 Rows - 3191 Series - 39-03-6060

Conveniently make up to six electrical connections on a printed circuit board (PCB) with this terminal block plug from Molex. The versatile component is also suitable for joining electrical wires together in power systems operating at a maximum of 9A. As the unit is polarised, assembly is straightforward. This feature also helps to prevent mismating with an incorrect part. Thanks to its nylon housing, you're protected against electric shocks for safety during installation.

• Plastic housing resists corrosion, so you can use it in moist environments without any risk
• Self-extinguishing, which means there's minimal risk of it contributing to a fire

Applications

• Industrial electronic devices
• Network servers
• Domestic appliances

What's the pitch of this terminal block plug?

This terminal block plug has a standard pitch of 6.7mm

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Техническая спецификация
pdf39-03-6060
pdf39-03-6060
pdfDatasheet
pdfLine Drawing - 39-03-6060
Кол-во контактов:
6
Количество рядов:
2
Номинал тока:
9.0A
Номинальное напряжение:
600.0 V
Ориентация корпуса:
Прямой
Род:
Male
Серийный номер:
3191
Серия:
Standard .093\
Тип монтажа:
Крепление на панель
Шаг:
6.7мм
