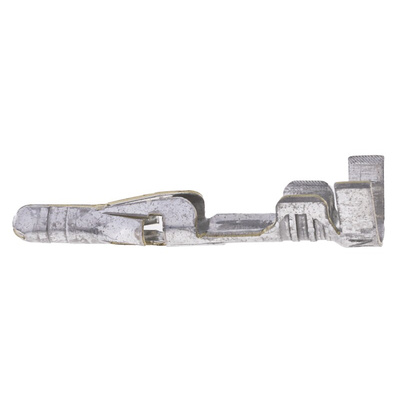

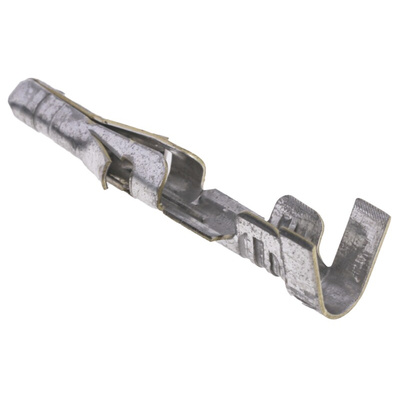

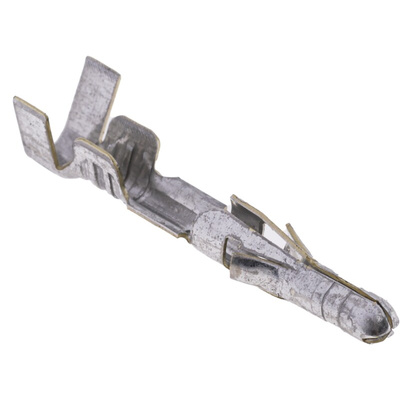

02-09-2103, Molex STANDARD .093" Series Male Crimp Terminal, 20AWG Min, 14AWG Max, Контакты

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals

2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Approvals

UL (E29179); CSA (LR 19980); EAMCL

Molex Crimp Terminal, Tin-Plated Brass Contact, 0.312g Weight - 1190 Series - 02-09-2101

Get current on the move around your circuit with this crimp terminal from Molex. By pressing it around your conductors with a hand crimper, you can achieve a reliably strong connection with minimal effort. As there's no need for soldering, you save on time too. The unit's tin-plated brass construction is highly conductive, giving you optimal electrical flow. This versatile terminal is compatible with wires ranging in size from 20 to 14AWG, so you can put it to work in various circuits.

Features & Benefits

• Low halogen, so emits minimal harmful fumes in the event of a fire
• Maximum 25 mating cycles means it's suitable to reuse
• Optional crimp or compression termination style for flexible setup

Applications

• Automotive manufacturing
• Consumer electronics
• Industrial networks

Can I use this crimp terminal in cold storage facilities?

Yes, it's suitable to use in demanding settings, thanks to its broad operating temperature range between -40°C to +105°C.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

02-09-2103 - Drawing

Drawing
