RS PRO Thermocouple Spade Lug for Use with Type K Thermocouple, RoHS Compliant Standard

RS PRO Thermocouple Spade Lug for use with Type K Thermocouple

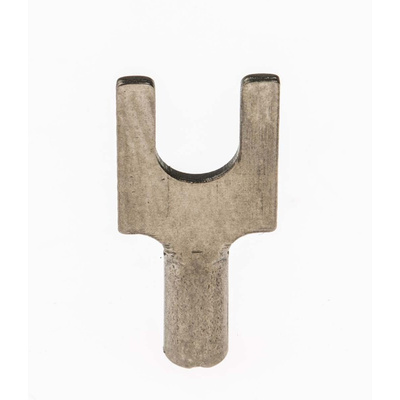

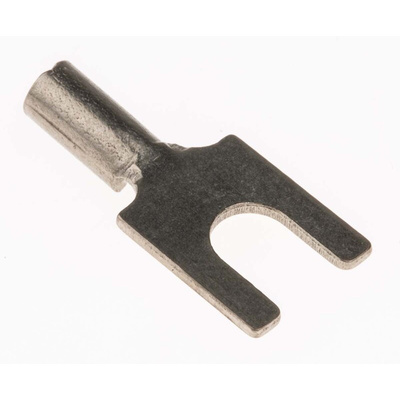

Thermocouple spade lugs are easy-to-attach electrical connections that help improve the accuracy of a thermocouple circuit. The RS PRO crimp-on spade lug is designed to be used with Type K thermocouple connectors and wires of up to 18 AWG (American Wire Gauge).

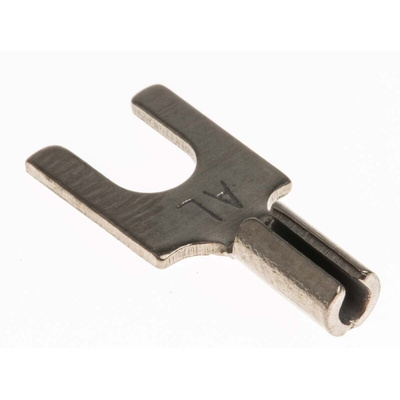

With a positive contact made from nickel-chromium and a negative contact made from nickel alloy, this connector matches the metals comprising Type K thermocouples. It also has code letters on each termination to ensure correct use. The spade lugs are sold in pairs with end caps. They're stackable to a maximum of five and are suitable for wire sizes 0.2 mm² to 0.65 mm².

Thermocouple spade lugs attach to the end of thermocouple leads or extension cable. These are colour coded green in accordance with IEC-584 (International Electrotechnical Commission), making it easy to identify and match to other green Type K thermocouple components.

Features and Benefits

• Thermocouple spade lug connector for use with Type K thermocouples
• Crimp-on connector with a single pair of positive and negative terminals
• Interlocking barrier terminal blocks
• Maximum operating temperature of +220°C
• IEC-584 colour coded green for clear identification
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

In a pack of 20 pairs
