RS PRO Barrier Terminal Thermocouple Terminal Block for Use with Type K Thermocouple, Single Pair, IEC Standard

RS PRO IEC Thermocouple Terminal Block for Use With Type K Thermocouple Type K, Single Pair

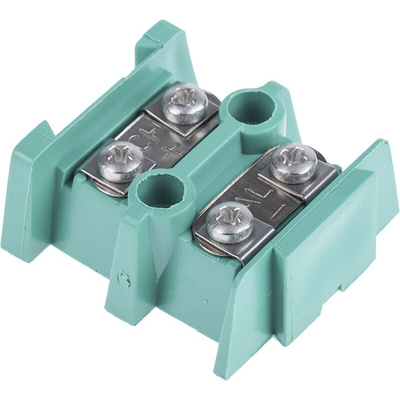

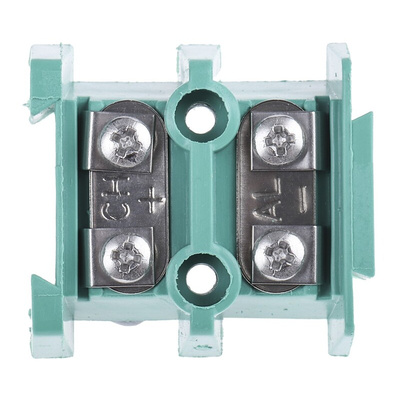

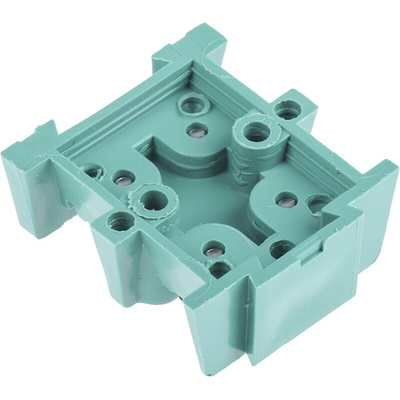

This thermocouple terminal block from RS PRO accepts leads from thermocouples to ensure accurate measurement of temperature. It's designed for Type K thermocouples, which are typically used in oxidising atmospheres like electric furnaces.
The thermocouple terminal block is manufactured to IEC (International Electrotechnical Commission) standards and uses the prescribed materials as contacts. This ensures accurate and sensitive measurements. Plus, it's colour-coded so you can be confident of error-free connections during installation. The blocks interlock and you can stack up to five units, which saves space on the measuring surface.
As the thermocouple block accepts wire sizes of up to 18 AWG (American Wire Gauge) it's a versatile choice for industrial use. A wide operating temperature range of -35°C to +220°C makes it suitable for rugged environments. The unit has been tested for quality and reliability.

Features and Benefits

• Thermocouple terminal block
• Single pair barrier terminal application
• Green colour
• Single pair connector size
• Barrier terminal connector type
• For use with a Type K thermocouple
• Operating temperature range of -35°C to +220°C
• Socket
• IEC standards met
• Type K thermocouple type

Note

Small Pack Size:236-4205
Large Pack Size:262-3101
