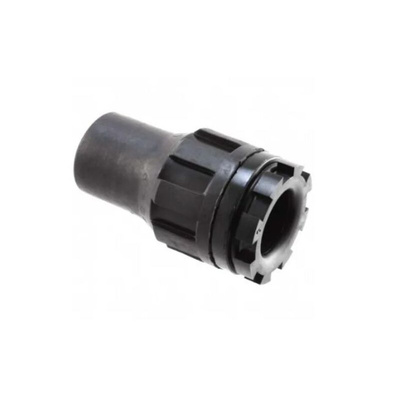

CES-3-D1, TE Connectivity CES Series Series Black Modified Polyolefin Cable Gland Locknut, 1-3/8-12 UNF Thread, 4.3mm Min, 15.2mm

The TE Connectivity CES range of heat shrink cable entry seal are designed for use with thin wall panels or bulkheads. These components are flame retardant in their usage conditions.

Feedthrough Product Type Cable Entry Seals/Feedthroughs
Included O-Ring Yes
Angle Straight
Pliancy Semi-Rigid
Adhesive Pre-Coat Yes
Heat Shrink Feedthrough Material Modified Polyolefin
Mounting Style Bulkhead
Recovered Wall Thickness (Nominal) 1.8 mm [ 0.07 in ]
Overall Length (Recovered) 57.2 mm [ 2.25 in ]
Feedthrough Adhesive Type Hot-Melt
Adhesive Code 97
Screw & Hole Thread Size 1 to 3/8 to 12
Expanded Inside Diameter (Min) 15.24 mm [ 0.60 in ]
Recovered Inside Diameter (Max) 4.32 mm [ 0.17 in ]

Datasheet - CES-3-D1
