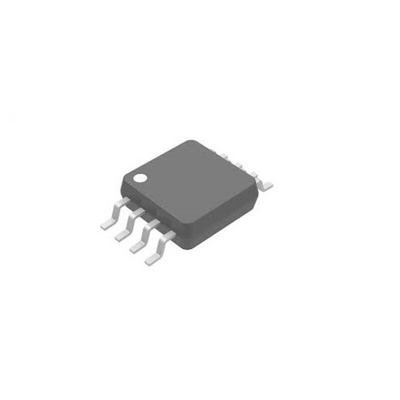

Microchip 25LC160B-I/MS, 16kB EEPROM Chip, 230ns 8-Pin SOP SPI

The Microchip 16 K bit serial electrically erasable PROM memory is accessed via a simple serial peripheral interface SPI compatible serial bus. The bus signals required are a clock input SCK plus separate data in SI and data out SO lines. Access to the device is controlled through a chip select CS input. Communication to the device can be paused via the hold pin HOLD. While the device is paused, transitions on its inputs will be ignored, with the exception of chip select, allowing the host to service higher priority interrupts.

Maximum clock 10 MHz
low power CMOS technology
2048 x 8 bit organization
32-byte page
Write cycle time 5 ms maximum
Self-timed erase and write cycles

Datasheet - 25LC160B-I/MS
